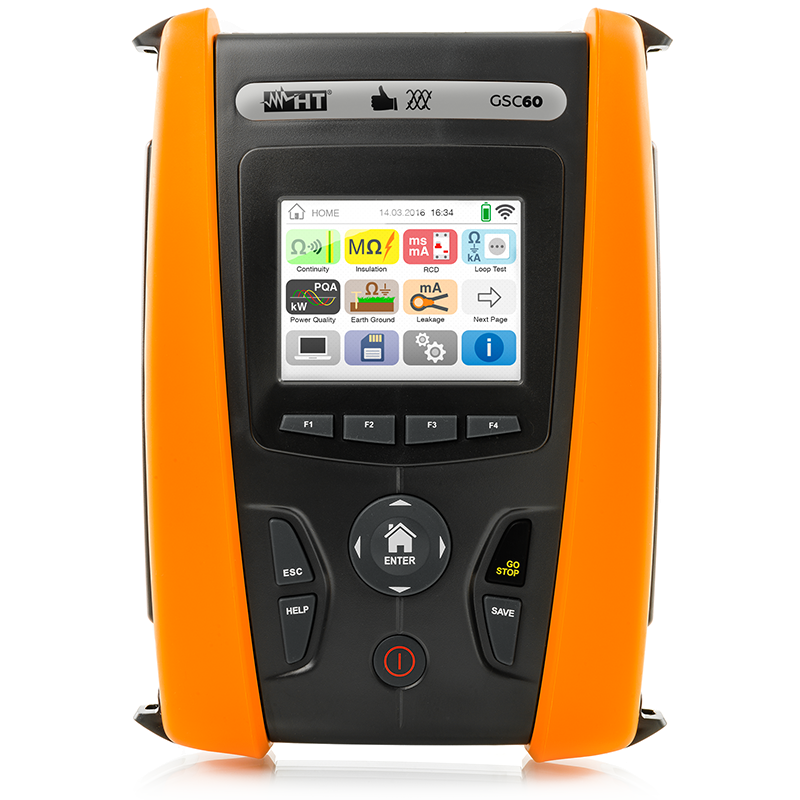

GSC60 was designed with the aim of making safety of electrical installations visible and
valuable, easily and quickly.
Thanks to the new HTOS™ system the unit displays a message OK - NOT OK after completing the
test.
The user interface, totally updated under HTOS™, permits to set and carry out measurements in
few steps.
You can store all recorded data and create folders and subfolders for each kind of test adding
comments and notes by means of virtual keyboard.
GSC60 is also a three-phase power and energy consumption analyzer boasting, as unique feature,
its FREE APP HTAnalysis compatible with iOS and Android.
Test results can be transferred through Wi-Fi onto smartphone or tablet enclosing a picture, a
video or a voice note to each measurement. You can transfer everything onto HT Cloud and make
data available in real time for your colleagues all over the world.
GSC60 makes the job of installer, electrician or consultant easy, rapid and cost-effective.

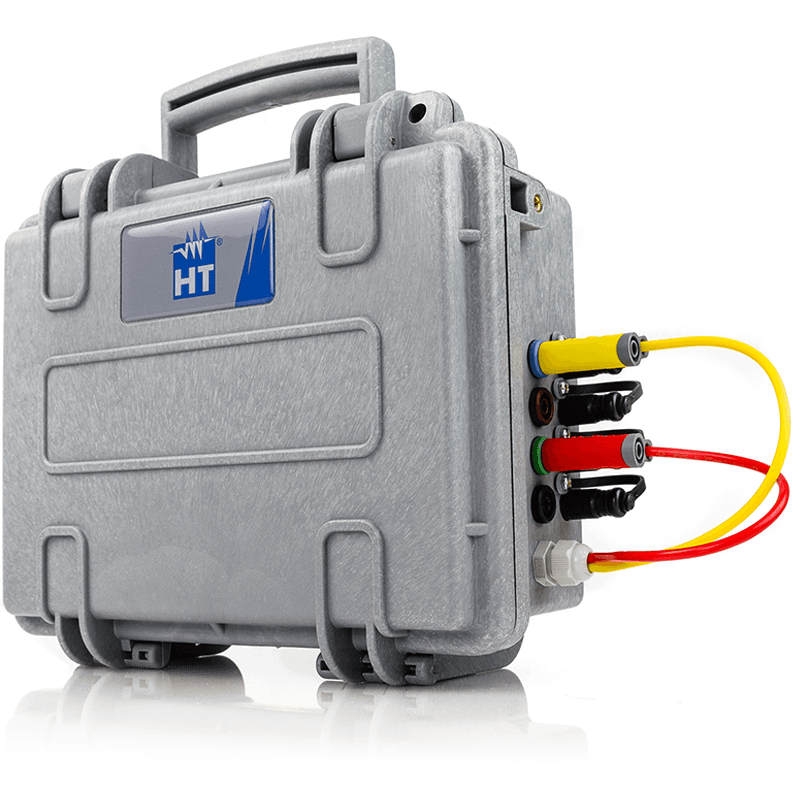

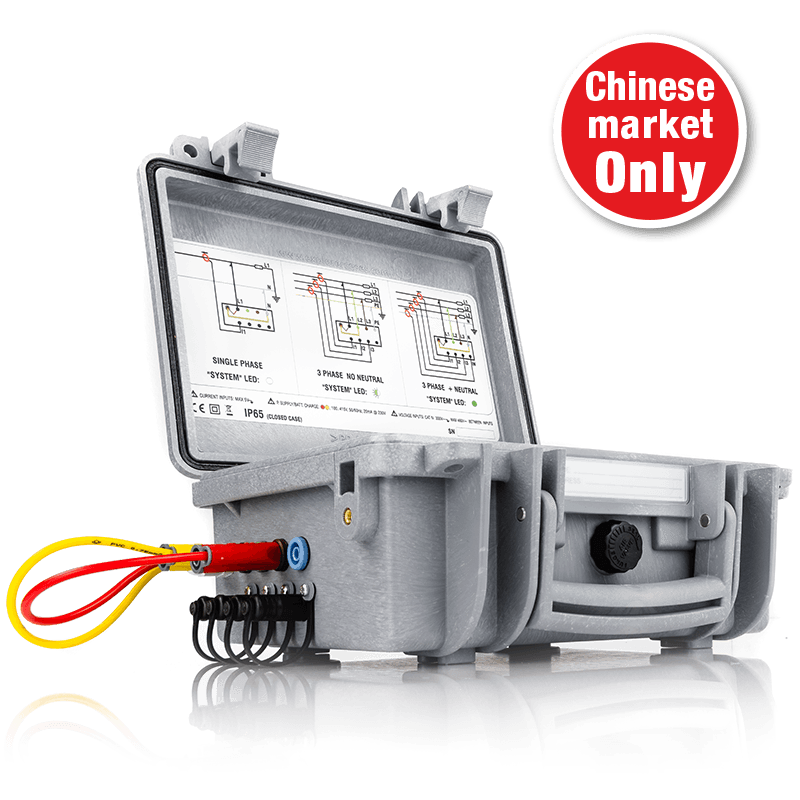

PQA820 is the innovative proposal by HT to easily analyze all involved components on a
three-phase or single-phase electric system.
When designing them, HT has taken particular care of three aspects: setting, the operating or
storage environment and data transfer.
PQA820 do not need to be set. They simply need to be connected, started and they
respectively record 383 and 44 quantities simultaneously.
They are provided with a comfortable IP65 case, which allows working in any kind of
environment.
When recording has finished, thanks to the WI-Fi connection, the devices are capable of
transferring all data onto a tablet, smart phone or PC.
Further to the Wi-Fi connection, PQA devices are provided with USB connection for transferring
data via cable to the PC through the provided TopView software.
They do not need any batteries since they are auto power-supplied from the mains they are
analyzing. The internal battery is automatically recharged by the input voltage and will provide
the necessary energy to go on recording in case power supply is interrupted.
To make the most of the technology used by PQA820 and PQA819 we recommend using the HTanalysis
App (available for free download on AppStore and Google Play) on a tablet or smart phone.
PQA820 respectively record 383 and 44 quantities which can be recalled and dragged onto the
screen to be compared between each other; for example, if you are displaying the trend of
voltages and you want to check for the possible presence of harmonic distortion, it will be
sufficient to scroll through the list of recorded measures and drag the one relevant to
harmonics to the screen. The same can be done for all other quantities: power, cosphi, current,
energy, etc.
Demo

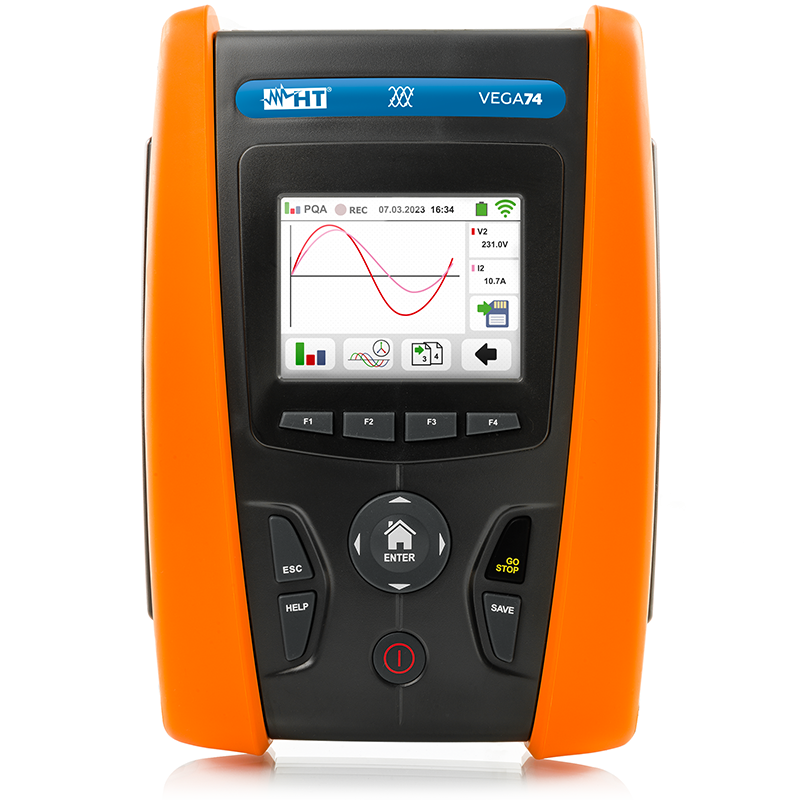

VEGA74 is a single-phase/three-phase network analyzer capable of acquiring and recording 600
electrical parameters simultaneously. The use of VEGA74 is very simple and intuitive, thanks to
the interface with color touchscreen display with icon structure. VEGA74 is ideal for solving
problems deriving from low network quality, voltage anomalies, harmonics and high energy
consumption which can then become much more harmful and complex phenomena to keep under control
if neglected for too long. The measurements taken can be transferred to a PC with USB or WiFi
connection with a dedicated software in order to analyze the data and create printed reports.
9 types of electrical systems: 1Φ-2 wires, 1Φ-center tap, 3Φ-3 wires, 3Φ-Aron, 3Φ-Δ
Open, 3Φ-Y Open, 3Φ-2 el. 1/2, 3Φ-4 Y-wire, 3Φ-High Leg.
Integration with programmable period: 2s, 5s, 10s, 30s, 1min, 2min, 5min, 10min, 15min,
30min
Three-phase Power quality and Energy consumption analysis:Single-phase/Three-phase
AC/DC voltage in single-phase/three-phase systems: up to 600V
AC/DC current in single-phase/three-phase systems: up to 3000A

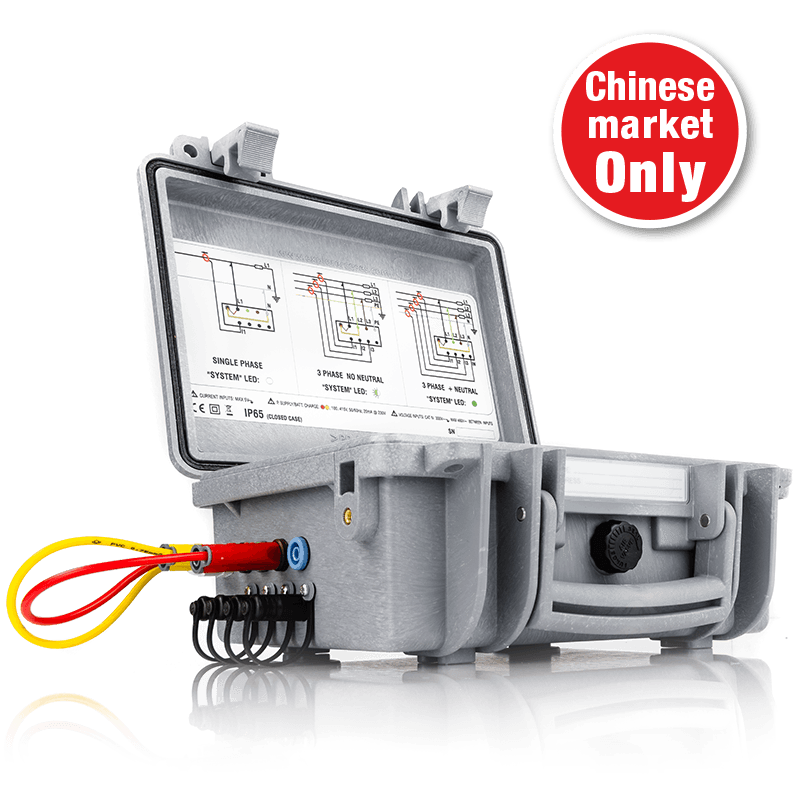

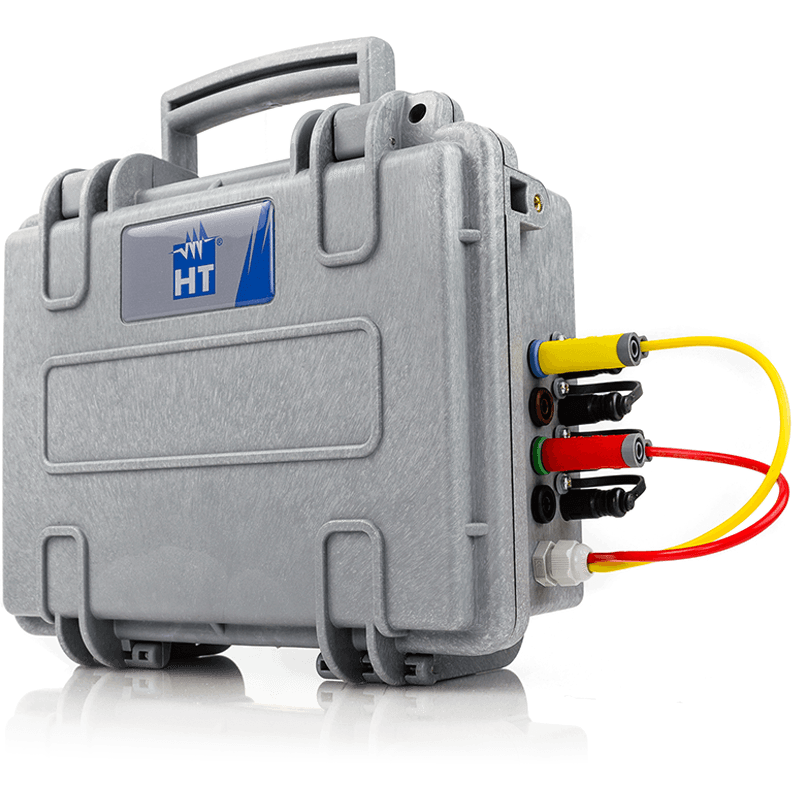

WSP-821w is the innovative proposal by HT to easily analyze all involved components on a
three-phase or single-phase electric system.
When designing them, HT has taken particular care of three aspects: setting, the operating or
storage environment and data transfer.
WSP-822w and WSP-821w do not need to be set. They simply need to be connected, started
and they respectively record 383 and 44 quantities simultaneously.
When recording has finished, thanks to the WI-Fi connection, the devices are capable of
transferring all data onto a tablet, smart phone or PC.
Further to the Wi-Fi connection, PQA devices are provided with USB connection for transferring
data via cable to the PC through the provided TopView software.
They are provided with a comfortable IP65 case, which allows working in any kind of
environment.
They do not need any batteries since they are auto power-supplied from the mains they are
analyzing. The internal battery is automatically recharged by the input voltage and will provide
the necessary energy to go on recording in case power supply is interrupted.
To make the most of the technology used by WSP-821w and WSP-822w we recommend using the
HTanalysis App (available for free download on AppStore and Google Play) on a tablet or smart
phone.
WSP-822w and WSP-821w respectively record 383 and 44 quantities which can be recalled and
dragged onto the screen to be compared between each other; for example, if you are displaying
the trend of voltages and you want to check for the possible presence of harmonic distortion, it
will be sufficient to scroll through the list of recorded measures and drag the one relevant to
harmonics to the screen. The same can be done for all other quantities: power, cosphi, current,
energy, etc.
WSP-822w is the innovative proposal by HT to easily analyze all involved components on a
three-phase or single-phase electric system.
When designing them, HT has taken particular care of three aspects: setting, the operating or
storage environment and data transfer.
WSP-822w and WSP-821w do not need to be set. They simply need to be connected, started
and they respectively record 383 and 44 quantities simultaneously.
When recording has finished, thanks to the WI-Fi connection, the devices are capable of
transferring all data onto a tablet, smart phone or PC.
Further to the Wi-Fi connection, PQA devices are provided with USB connection for transferring
data via cable to the PC through the provided TopView software.
They are provided with a comfortable IP65 case, which allows working in any kind of
environment.

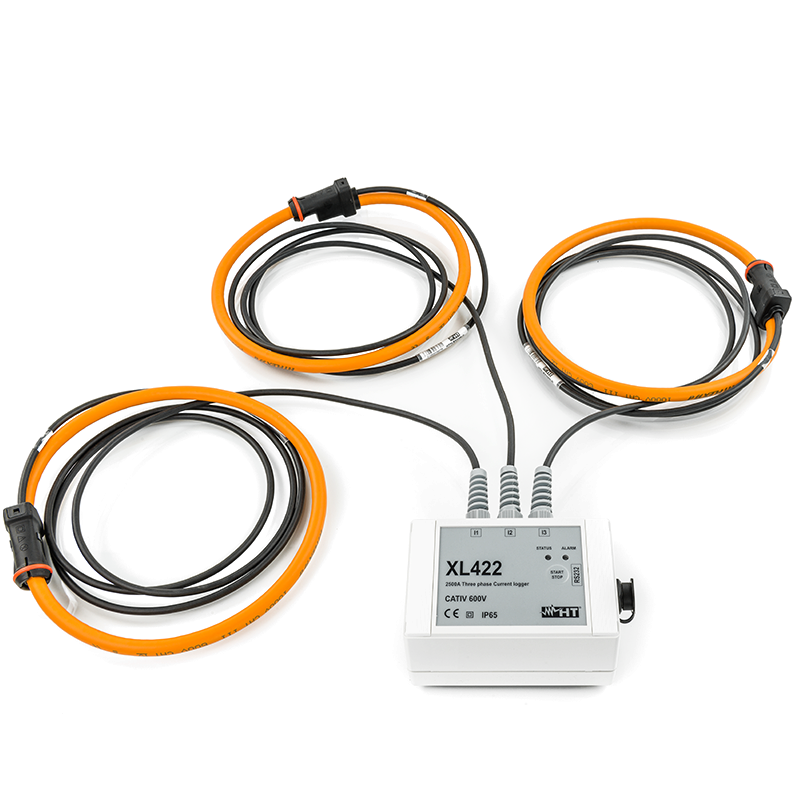

XL422 is a Data Logger capable of measuring and recording the true root mean square(TRMS) value
of AC current up to 2500A in three-phase 3-wire electric systems for different applications
(evaluation of load currents, rated powers of transformers, etc.).
The device has a comfortable structure with integrated flex clamp jaws which allow surrounding
also big-sized cables or bars. Thanks to a an advanced memory management algorithm it is
possible to monitor a system even for a long time. The device starts recording with a sampling
period which can be selected through software among 1, 6, 30 and 60 seconds and, when memory is
almost full, the previously recorded values are “re-sampled” according to the subsequent value
of the sampling period, thus freeing part of the memory; the device then goes on recording new
values, using the new measuring interval. In this way, it is possible to keep the device
recording up to approximately 90 days. Each recording is kept stored in the internal memory and
can be downloaded and displayed on the PC always through a dedicated software. Data Logger XL422
is also provided with a special adhesive strap which makes it possible to place it in any place
in the installation where measuring is needed. The high protection rating (IP65) makes this
device fully reliable also under extreme operating conditions.
AC current in single-phase/three-phase systems: Three-phase / Single-phase up to 2500A
AC
Max number of simultaneously selectable parameters: 3
Recording with selectable integration period: 1s, 6s, 30s, 1min, 5min
Indicative memory duration (single-/three-phase in days @ PI=5min): 455 / 1820 (according to
battery duration)
Internal memory : 1MB
GSC60 was designed with the aim of making safety of electrical installations visible and
valuable, easily and quickly.
Thanks to the new HTOS™ system the unit displays a message OK - NOT OK after completing the
test.
The user interface, totally updated under HTOS™, permits to set and carry out measurements in
few steps.
You can store all recorded data and create folders and subfolders for each kind of test adding
comments and notes by means of virtual keyboard.
GSC60 is also a three-phase power and energy consumption analyzer boasting, as unique
feature, its FREE APP HTAnalysis compatible with iOS and Android.
Test results can be transferred through Wi-Fi onto smartphone or tablet enclosing a picture, a
video or a voice note to each measurement. You can transfer everything onto HT Cloud and make
data available in real time for your colleagues all over the world.

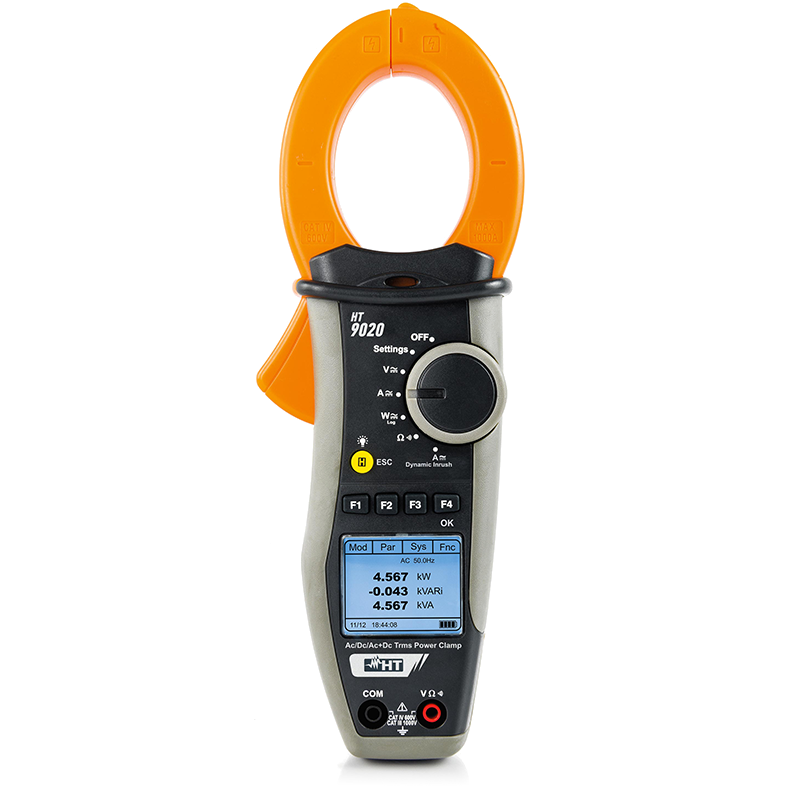

Clamp-on power quality analyzer HT9020 has been designed for measuring DC, AC+DC TRMS current up
to 1000A according to CAT IV 600V in compliance with standard IEC/EN61010-1
HT9020 carries out measurements of Active, Reactive and Apparent Power and Energy,
voltage and current harmonic analysis up to the 25th order with THD% calculation, in
single-phase or three-phase balanced systems. It also tests phase sequence and phase conformity
by 1-lead measuring method as well as detects any event related to electric motor starting
currents (DYNAMIC INRUSH). DYNAMIC INRUSH™ permits to measure inrush currents with user-defined
time frames, providing measurements more reliable than standard fixed time-frame testers. The
user has the chance to recall and display the measurement by applying different time frames. For
example, if the user carries out a measurement using a time frame of 100 ms, he can post-process
the same measurement by applying a time frame of: 16,7, 20, 50, 100, 150, or 200 ms. This grants
the utmost flexibility for each measurement, and prevents to measure again and again to get the
real inrush current value. HT9020 is provided with traceable calibration certificate.

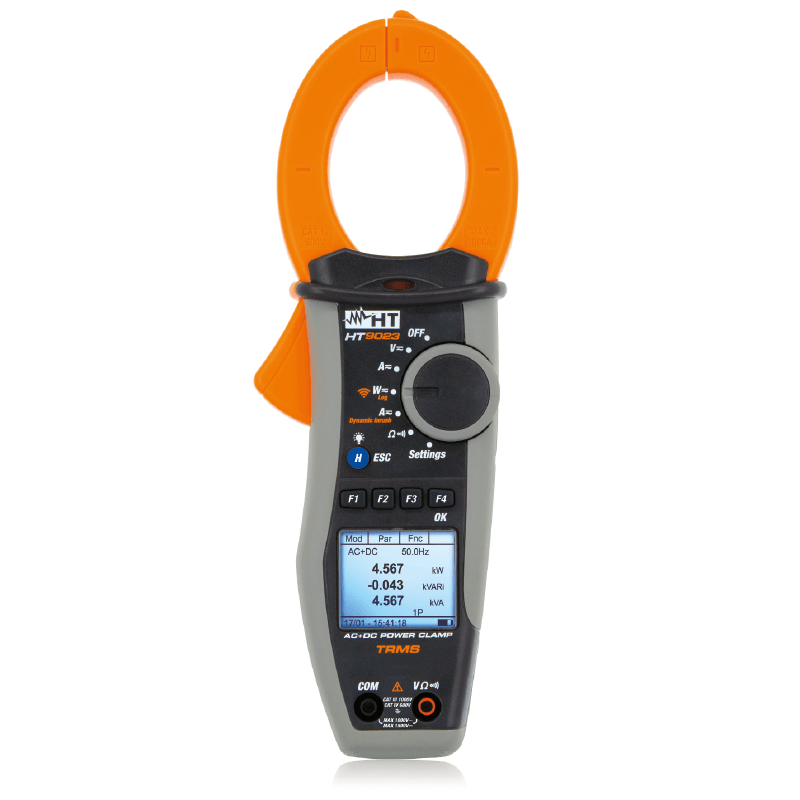

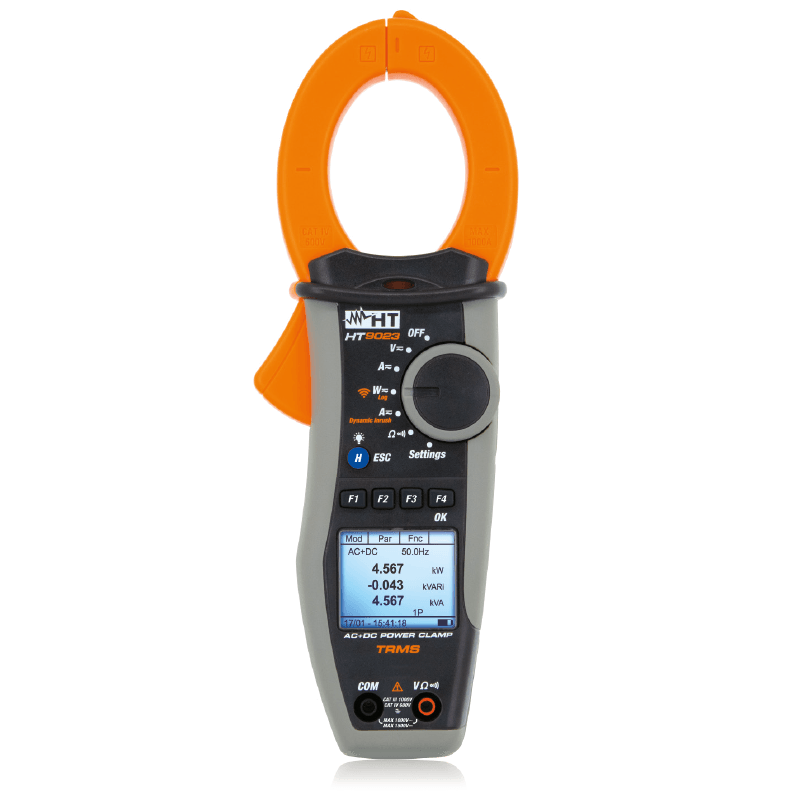

HT9023 has been designed to measure AC, DC AC+DC current up to 1000A in TRMS reaching CAT IV
600V and CAT III 1000V in compliance with safety standard IEC/EN61010-1. The clamp also measures
DC voltage up to 1500V, AC, AC+DC voltage up to 1000V, Active, Reactive and Apparent Power,
Power Factor, Energy, voltage/current harmonic analysis up to the 25th with THD% calculation in
balanced single-phase or three-phase systems. It is also possible to carry out the phase
sequence test with 1-terminal. The instrument also detects the events linked to motor starting
currents (Dynamic INRUSH) and allows recording each measured electric parameter over time, with
the possibility of transferring data via WiFi to Android/iOS devices through the HTAnalysis App
(available from late 2020) or onto PC through the TOPVIEW software. The clamp is provided with a
wide graphic dot-matrix screen (128x128pxl) with backlight, in order to allow reading data even
in poorly lit environments, and it is provided with an auto power off function to preserve its
internal battery.
VEGA74 is a single-phase/three-phase network analyzer capable of acquiring and recording 600
electrical parameters simultaneously. The use of VEGA74 is very simple and intuitive, thanks to
the interface with color touchscreen display with icon structure. VEGA74 is ideal for solving
problems deriving from low network quality, voltage anomalies, harmonics and high energy
consumption which can then become much more harmful and complex phenomena to keep under control
if neglected for too long. The measurements taken can be transferred to a PC with USB or WiFi
connection with a dedicated software in order to analyze the data and create printed reports.
9 types of electrical systems: 1Φ-2 wires, 1Φ-center tap, 3Φ-3 wires, 3Φ-Aron, 3Φ-Δ
Open, 3Φ-Y Open, 3Φ-2 el. 1/2, 3Φ-4 Y-wire, 3Φ-High Leg.
Integration with programmable period: 2s, 5s, 10s, 30s, 1min, 2min, 5min, 10min, 15min,
30min
Three-phase Power quality and Energy consumption analysis: Single-phase/Three-phase
AC/DC voltage in single-phase/three-phase systems: up to 600V
AC/DC current in single-phase/three-phase systems: up to 3000A

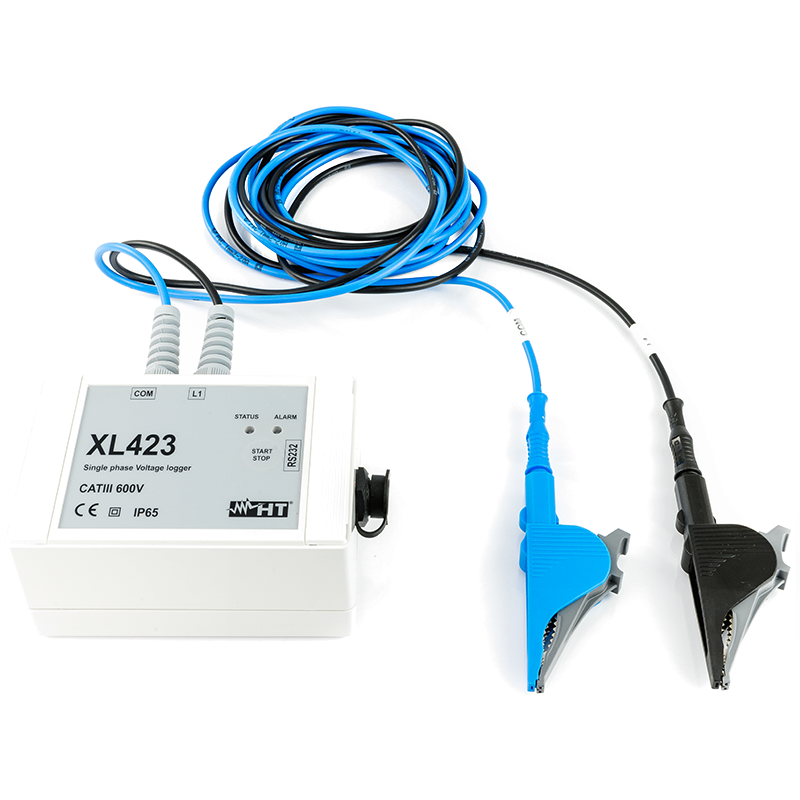

XL423 is a Data Logger capable of measuring and recording the true root mean square(TRMS) value
of AC voltage up to 600V in single-phase electric systems for different applications (evaluation
of mains voltage, load unbalance, etc.).
The device has a comfortable fully mobile structure complete with cables for measuring voltage
with safety alligator clips. Thanks to a an advanced memory management algorithm it is possible
to monitor a system even for a long time. The device starts recording with a sampling period
which can be selected through software among 1, 6, 30 and 60 seconds and, when memory is almost
full, the previously recorded values are “re-sampled” according to the subsequent value of the
sampling period, thus freeing part of the memory; the device then goes on recording new values,
using the new measuring interval. In this way, it is possible to keep the device recording up to
approximately 1 year. Each recording is kept stored in the internal memory and can be downloaded
and displayed on the PC always through a dedicated software. Data Logger XL423 is also provided
with a special adhesive strap which makes it possible to place it in any place in the
installation where measuring is needed. The high protection rating (IP65) makes this device
fully reliable also under extreme operating conditions.
AC voltage in single-phase/three-phase systems: Single-phase up to 600VAC
Max number of simultaneously selectable parameters: 1
Recording with selectable integration period: 1s, 6s, 30s, 1min, 5min
Indicative memory duration (single-/three-phase in days @ PI=5min): 455
Internal memory : 1MB

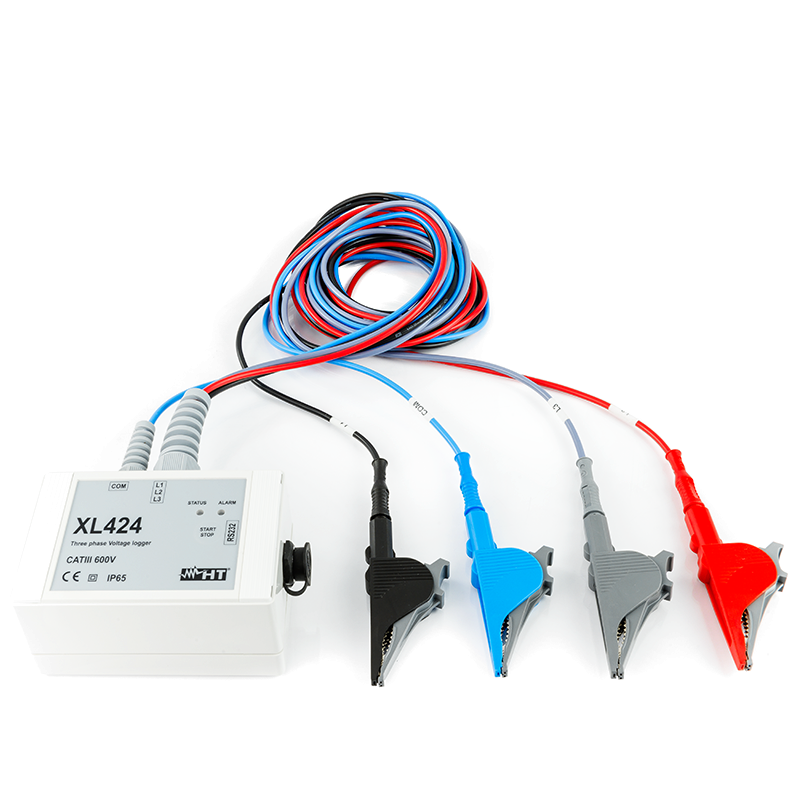

XL424 is a Data Logger capable of measuring and recording the true root mean square(TRMS) value
of AC voltage up to 600V in three-phase 4-wire electric systems for different applications
(evaluation of mains voltage, load unbalance, etc.).
The device has a comfortable fully mobile structure complete with cables for measuring voltage
with safety alligator clips. Thanks to a an advanced memory management algorithm it is possible
to monitor a system even for a long time. The device starts recording with a sampling period
which can be selected through software among 1, 6, 30 and 60 seconds and, when memory is almost
full, the previously recorded values are “re-sampled” according to the subsequent value of the
sampling period, thus freeing part of the memory; the device then goes on recording new values,
using the new measuring interval. In this way, it is possible to keep the device recording up to
approximately 90 days. Each recording is kept stored in the internal memory and can be
downloaded and displayed on the PC always through a dedicated software. Data Logger XL424 is
also provided with a special adhesive strap which makes it possible to place it in any place in
the installation where measuring is needed. The high protection rating (IP65) makes this device
fully reliable also under extreme operating conditions.
AC/DC voltage in single-phase/three-phase systems: Three-phase / Single-phase
Max number of simultaneously selectable parameters: 3
Recording with selectable integration period: 1s, 6s, 30s, 1min, 5min
Internal memory: 1MB
PQA819 is the innovative proposal by HT to easily analyze all involved components on a
three-phase or single-phase electric system.
When designing them, HT has taken particular care of three aspects: setting, the operating or
storage environment and data transfer.
(1) PQA819 do not need to be set. They simply need to be connected, started and they
respectively record 383 and 44 quantities simultaneously.
(2) They are provided with a comfortable IP65 case, which allows working in any kind of
environment.
(3) When recording has finished, thanks to the WI-Fi connection, the devices are
capable of
transferring all data onto a tablet, smart phone or PC.
Further to the Wi-Fi connection, PQA devices are provided with USB connection for transferring
data via cable to the PC through the provided TopView software.
They do not need any batteries since they are auto power-supplied from the mains they
are analyzing. The internal battery is automatically recharged by the input voltage and will
provide the necessary energy to go on recording in case power supply is interrupted.
To make the most of the technology used by PQA820 and PQA819 we recommend using the HTanalysis
App (available for free download on AppStore and Google Play) on a tablet or smart phone.
PQA819 respectively record 383 and 44 quantities which can be recalled and dragged onto the
screen to be compared between each other; for example, if you are displaying the trend of
voltages and you want to check for the possible presence of harmonic distortion, it will be
sufficient to scroll through the list of recorded measures and drag the one relevant to
harmonics to the screen. The same can be done for all other quantities: power, cosphi, current,
energy, etc.
PQA820 is the innovative proposal by HT to easily analyze all involved components on a
three-phase or single-phase electric system.
When designing them, HT has taken particular care of three aspects: setting, the operating or
storage environment and data transfer.
In combination with PQA820, the ACONBIN adapter (optional) is required.
PQA820 do not need to be set. They simply need to be connected, started and they
respectively record 383 and 44 quantities simultaneously.
They are provided with a comfortable IP65 case, which allows working in any kind of
environment.
When recording has finished, thanks to the WI-Fi connection, the devices are capable of
transferring all data onto a tablet, smart phone or PC.
Further to the Wi-Fi connection, PQA devices are provided with USB connection for transferring
data via cable to the PC through the provided TopView software.
They do not need any batteries since they are auto power-supplied from the mains they
are analyzing. The internal battery is automatically recharged by the input voltage and will
provide the necessary energy to go on recording in case power supply is interrupted.
To make the most of the technology used by PQA820 and PQA819 we recommend using the HTanalysis
App (available for free download on AppStore and Google Play) on a tablet or smart phone.
PQA820 respectively record 383 and 44 quantities which can be recalled and dragged onto
the screen to be compared between each other; for example, if you are displaying the trend of
voltages and you want to check for the possible presence of harmonic distortion, it will be
sufficient to scroll through the list of recorded measures and drag the one relevant to
harmonics to the screen. The same can be done for all other quantities: power, cosphi, current,
energy, etc.
WSP-821w is the innovative proposal by HT to easily analyze all involved components on a
three-phase or single-phase electric system.
When designing them, HT has taken particular care of three aspects: setting, the operating or
storage environment and data transfer.
WSP-822w and WSP-821w do not need to be set. They simply need to be connected, started
and they respectively record 383 and 44 quantities simultaneously.
They are provided with a comfortable IP65 case, which allows working in any kind of
environment.
When recording has finished, thanks to the WI-Fi connection, the devices are capable of
transferring all data onto a tablet, smart phone or PC.
Further to the Wi-Fi connection, PQA devices are provided with USB connection for transferring
data via cable to the PC through the provided TopView software.
They do not need any batteries since they are auto power-supplied from the mains they
are analyzing. The internal battery is automatically recharged by the input voltage and will
provide the necessary energy to go on recording in case power supply is interrupted.
To make the most of the technology used by WSP-821w and WSP-822w we recommend using the
HTanalysis App (available for free download on AppStore and Google Play) on a tablet or smart
phone.
WSP-822w and WSP-821w respectively record 383 and 44 quantities which can be recalled
and dragged onto the screen to be compared between each other; for example, if you are
displaying the trend of voltages and you want to check for the possible presence of harmonic
distortion, it will be sufficient to scroll through the list of recorded measures and drag the
one relevant to harmonics to the screen. The same can be done for all other quantities: power,
cosphi, current, energy, etc.
WSP-822w is the innovative proposal by HT to easily analyze all involved components on a
three-phase or single-phase electric system.
When designing them, HT has taken particular care of three aspects: setting, the operating or
storage environment and data transfer.
WSP-822w and WSP-821w do not need to be set. They simply need to be connected, started
and they respectively record 383 and 44 quantities simultaneously.
They are provided with a comfortable IP65 case, which allows working in any kind of
environment.
When recording has finished, thanks to the WI-Fi connection, the devices are capable of
transferring all data onto a tablet, smart phone or PC.
Further to the Wi-Fi connection, PQA devices are provided with USB connection for transferring
data via cable to the PC through the provided TopView software.
DemoThey do not need any batteries since they are auto power-supplied from the mains
they are analyzing. The internal battery is automatically recharged by the input voltage and
will provide the necessary energy to go on recording in case power supply is interrupted.
To make the most of the technology used by WSP-821w and WSP-822w we recommend using the
HTanalysis App (available for free download on AppStore and Google Play) on a tablet or smart
phone.
WSP-822w and WSP-821w respectively record 383 and 44 quantities which can be recalled
and dragged onto the screen to be compared between each other; for example, if you are
displaying the trend of voltages and you want to check for the possible presence of harmonic
distortion, it will be sufficient to scroll through the list of recorded measures and drag the
one relevant to harmonics to the screen. The same can be done for all other quantities: power,
cosphi, current, energy, etc.
