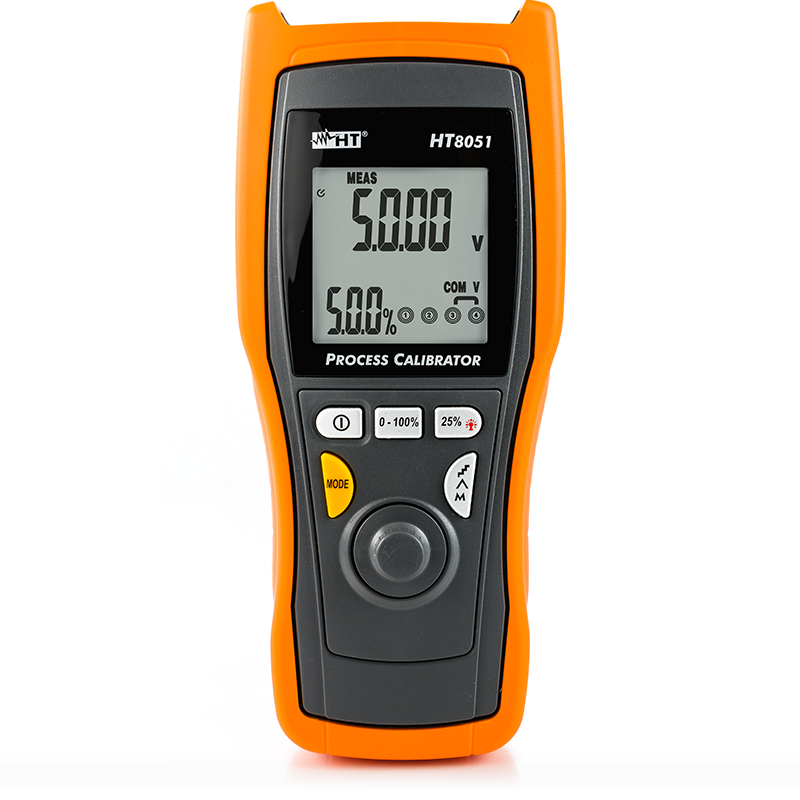

HT8051 is a professional digital process calibrator capable of generating and measuring signals
of DC voltage and current up to 10V and 24mA respectively with a very simple setting of values
thanks to the innovative adjuster. In measuring and generating current, it is also possible to
define a display, also in percentage format, corresponding to the set values (0% = 4mA, 100% =
20mA).
The generation of voltage and current signals is also possible by using up to 3
selectable ramps. This model also allows measuring the current absorbed by external transducers
directly supplied by it and simulating the presence of a transducer with adjustable current in
its whole measuring range. HT8051 has been designed in compliance with safety standard
IEC/EN61010-1 with double protective insulation, and each function can be selected through the
appropriate buttons found on the front panel. This device is the ideal solution for typical
industrial automation applications and for laboratory activities.
AC/DC voltage: MAX 10VDC
AC/DC current: MAX 24mADC

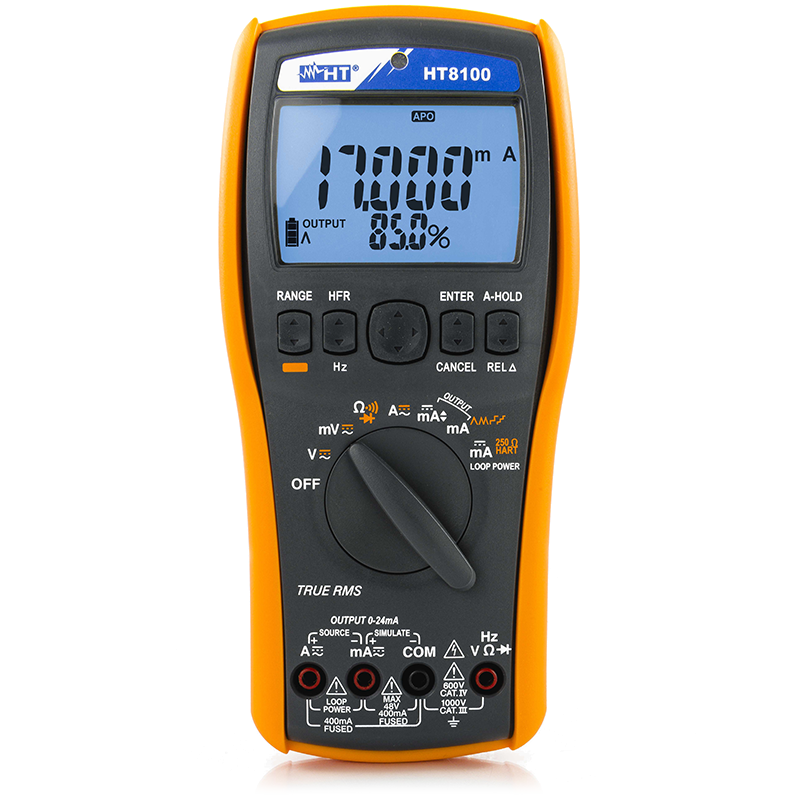

Model HT8100 is a professional device which groups measurements such as TRMS multimeter and
function of process calibrator capable of generating current signals DC 0-20mA and 4-20mA.
As a digital multimeter, the device mainly carries out AC/DC voltage and AC/DC current
measurements. In its function as a current generator (values can be displayed also in a
percentage format) options 0-20mA and 4-20mA are available, with manual and automatic settings
of thresholds on the output signal. This model also allows measuring the current absorbed by
external transducers directly supplied by it and simulating the presence of a transducer with
adjustable current in its whole measuring range. HT8100 is capable of saving the results of
measurements in its internal memory and has been designed in compliance with safety standard
IEC/EN61010-1 in CAT III 1000V and CAT IV 600V with double protective insulation. Each function
can be selected through the appropriate buttons found on the front panel. This device is the
ideal solution for typical industrial automation applications.
AC/DC voltage: 1000V anche AC+DC
AC/DC current: 1A anche AC+DC
