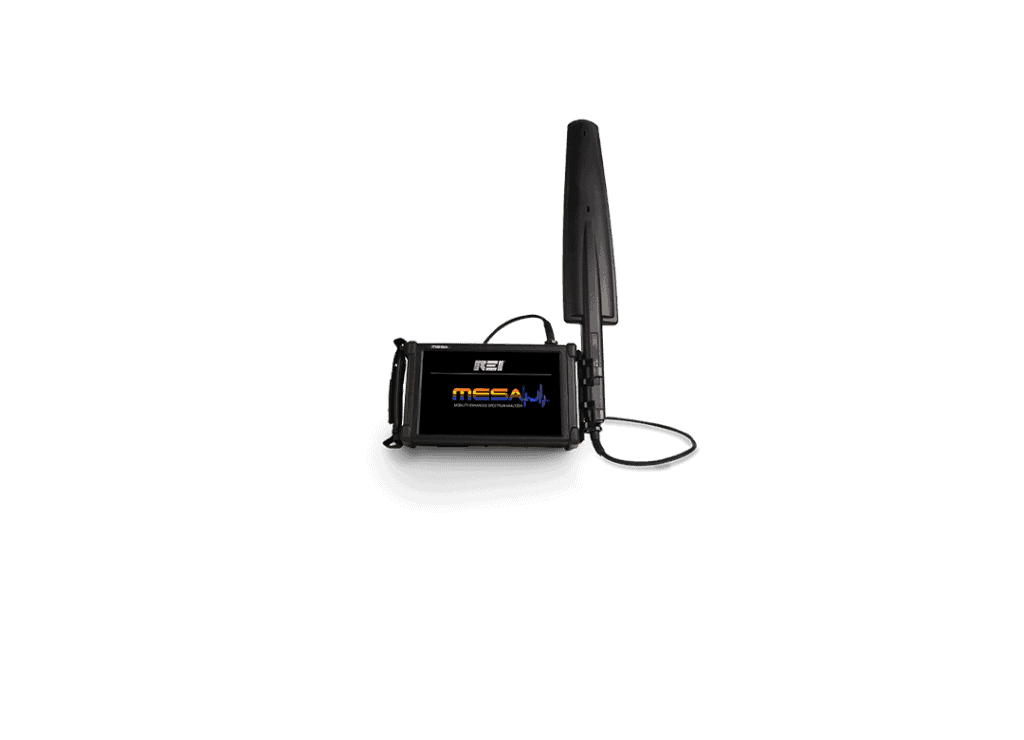

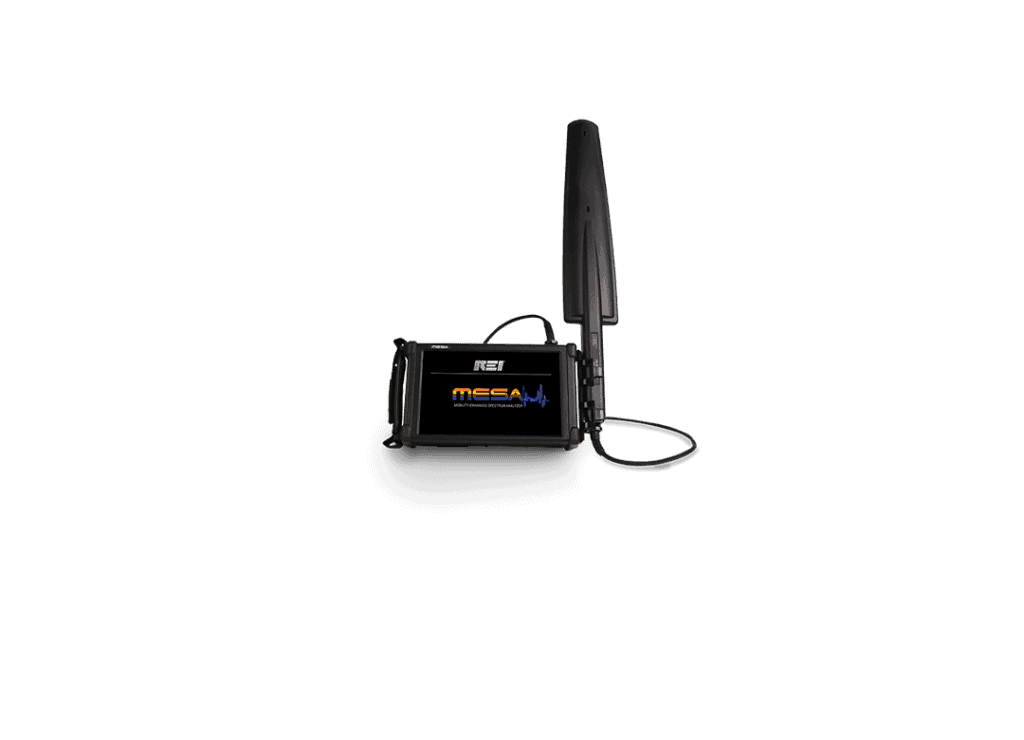

The MESA is a portable, handheld RF receiver that detects known, unknown, illegal, disruptive, or interfering transmissions.
- Easy to set up and puts sweep data at your fingertips with user friendly navigation. Auto antenna recognition makes changing antennas a snap
- Full touchscreen control provides quick access to Spectrum, WiFi, Bluetooth, Mobile Bands, and SmartBars modes
- Portable, handheld unit can sweep target areas using a full selection of fixed, bracket mounted, and hand held antennas/probes
Principle of operationMESA has the portability and operational features not found on other spectrum analyzers. It provides tools, specifications and design features for locating unknown signals throughout a wide frequency range up to 6 GHz (12 GHz with the Down Converter antenna).
Features- MESA displays a full range of frequency data to 6GHz (12GHz with the Down Converter Antenna).

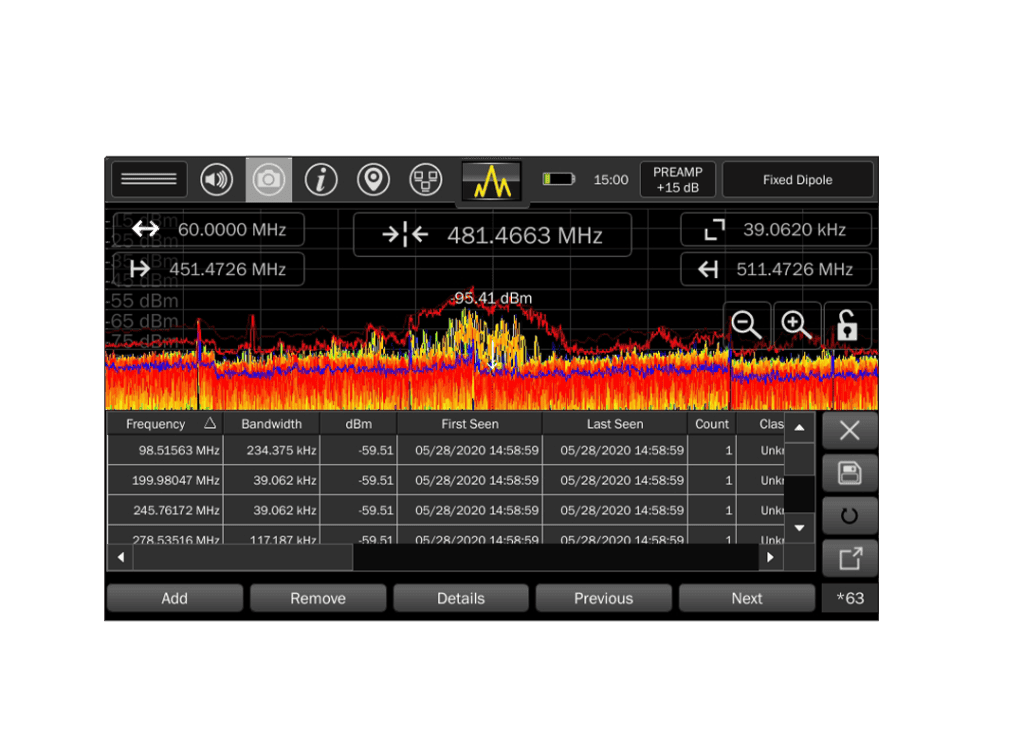

- Spectrum Analyzer: zoom, screen lock, frequency span, start/stop frequencies, resolution bandwidth, center frequency.

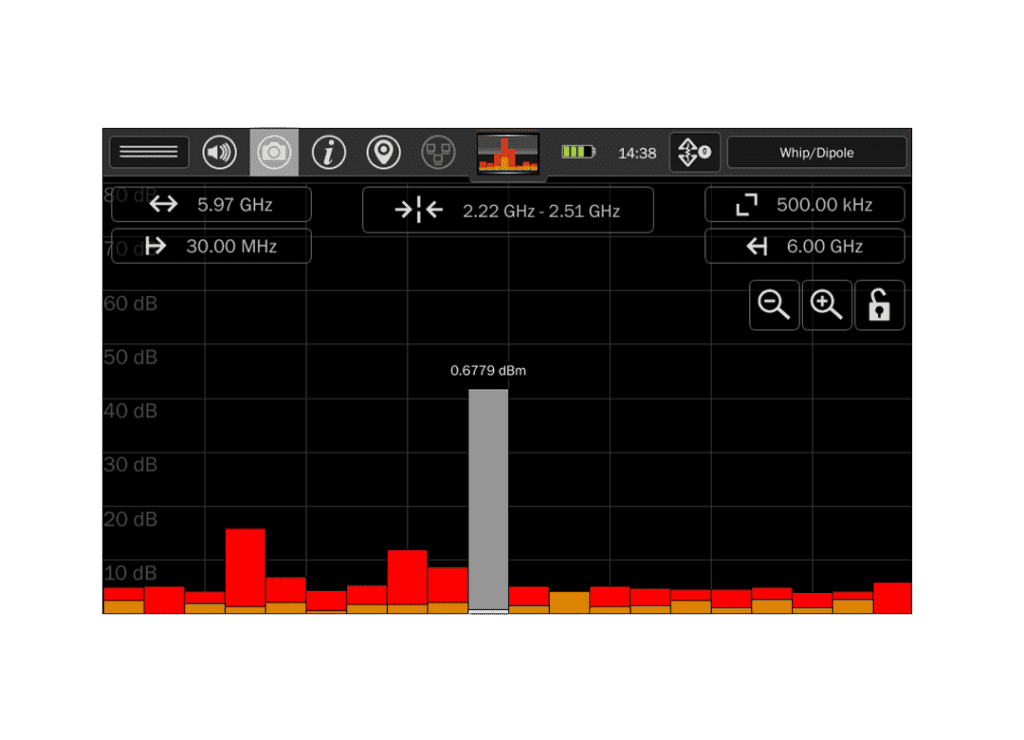

- SmartBars: displays new or increased RF energy in a bar graph.
- Mobile Bands: displays RF in specific bands (i.e. Wifi, GSM, etc.), includes new Jammer/Interference Detection feature with v 1.1.9 firmware update and current production models.
- WiFi: displays nearby access points and relative signal strength.
- Bluetooth: displays nearby pairing activity.
- Display Features: Persistence, Raster Waterfall, Spectral Power Histogram (RSSI), Peak Trace, Average Trace, Patent Pending Cached Peak.
- Sweep Speed: >200 GHz/second
- Operating Freq. Range: 10 kHz - 6 GHz /*12 GHz
- Resolution Bandwidth Variable depending on span: 0.0380 kHz to 312.5 kHz
- Instantaneous Bandwidth: 25 MHz
- DANL - Noise Floor: 312.5 kHz RBW with Pre-amp: -90 dBm, 9.765 kHz RBW with Pre-amp: -110dBm
- Attenuation: 0 dB, 10 dB, 20 dB, Auto
- Preamp: +15 dB
- Detection Types: RF, Carrier Current, Acoustic Leakage, IR/Visible Light, Ultrasonic
- Spurious Free Dynamic Range: 81.6 dB
- Receiver Type: Swept-tuned Superheterodyne
- Audio Demodulation AM/FM demodulation with filter options: Auto, 200 kHz, 20 kHz, 5 kHz
- Input Port: QMA connector (RF input) for included and auxiliary RF antennas
POWER POWER- Supply AC: 100-240V/50-60Hz; single rechargeable Li-ion battery (includes 1 spare)
- Run Time: ~3 hours (typical) per battery
- Charge time: ~3 hours per battery (typical)
MECHANICAL- Unit Dimensions: 5 x 8 x 2 in /13 x 20 x 5 cm
- Unit Weight: 2.4lbs/1.1kg including battery

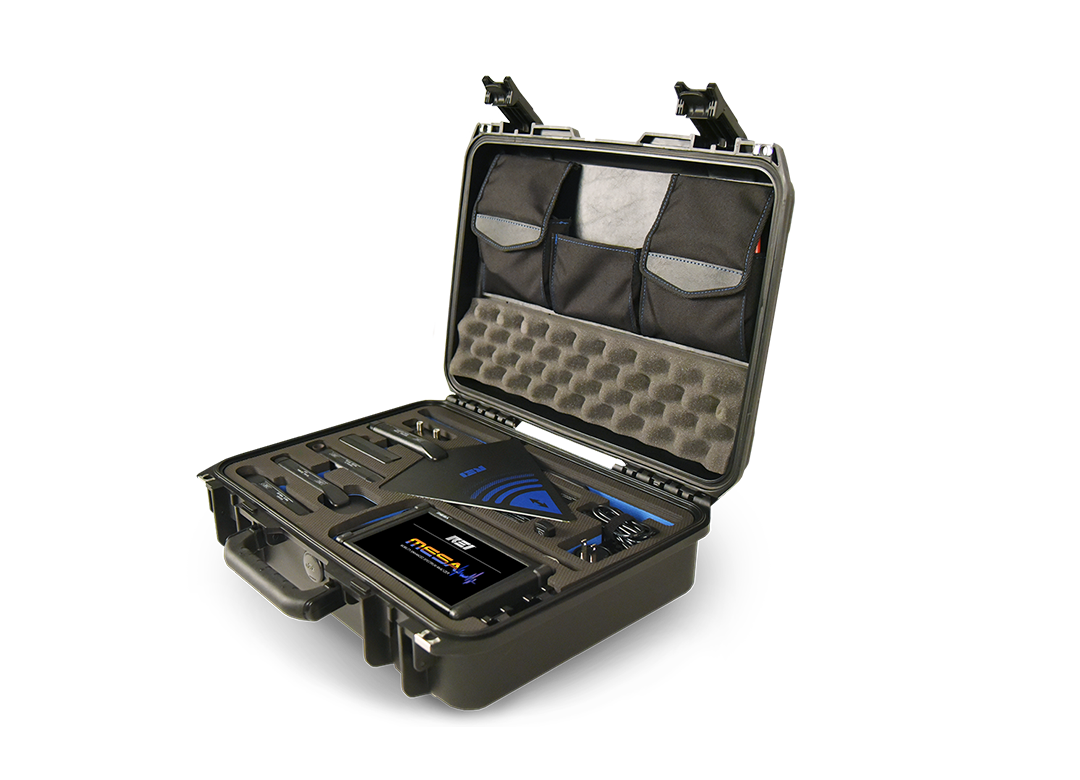

- Case Dimensions: 6 x 15 x 18.5in / 16 x 38 x 47cm
- Case/Contents Weight: 15lbs. / 6.8kg
ENVIRONMENTAL- Operating temperature: -10° to 53° C
- Battery charging temperature: 5° to 37° C
- Storage temperature: -20° to 60° C
