Users can detect both small, modern circuitry in office environments with the 2.4 antenna and older, less refined circuitry through dense materials with the 900 antenna
Usability:Antenna heads are easily exchanged by simply turning a pair of thumb screws
Portability:Lightweight design with convenient carrying case
- Detects all types of electronics - whether active, passive or even switched off
- Adjustable Extension Pole – Extends from 30cm to 140cm
- Adjustable Head Angle – 5 lockable positions over 90 degrees
- Easy to operate with an intuitive user-friendly interface
- 2.4 GHz Transmit - up to 4 Watts
- 2nd Harmonic (4.8 GHz) and 3rd Harmonic (7.2 GHz) Receivers
- As powerful and sensitive as much larger so called ‘portable’ units
- Detected material Indicator ‘Silicon’ or ‘Metal'
- Will even detect the latest NANO SIM cards from up to 20cm
- Audible Tone and Demodulation Function through speaker or earphones
- Battery life up to 4.5 hours
- Weight less than 900g
- Machined Aluminium Enclosure with Moulded Plastic Antenna Cover
- Supplied in a compact Military
- Standard Carry Case
Applications
- Technical Surveillance Countermeasures (TSCM)
- Counter Surveillance
- Non-Linear Junction Detection
- Locating Hidden Electronics
- Locating Electronic Contraband
- Intelligence Protection
- Executive Protection
- Eavesdropping Detection
- Surveillance Equipment Detection
- Electronic Surveillance Detection
TRANSMITTER
- 2.4 antenna transmit power: 3.3 W; G model: 6.6 W
- 900 antenna transmit power: 1.4 W; G model: 3.2 W
- Power control: manual or auto control
- 2.4 antenna frequency band: 2.404 GHz - 2.472 GHz
- 900 antenna frequency band: 905 - 925 MHz; G model: 840 - 960 MHz
- Transmit channels: manual or auto selection, more than 60 available
- Transmit modulation: pulsing, digital spread spectrum, 1.25 MHz bandwidth
- Please note: G model authorized for use only by agencies, persons and entities not restricted by FCC & IC. Both models are CE marked for
- Public safety and security.
RECEIVER
- Simultaneous 2nd & 3rd harmonic receive
- Digitally correlated
- 2.4 antenna frequency band:- Second Harmonic (4.808 GHz – 4.944 GHz)
- Third Harmonic: (7.212 GHz – 7.416 GHz)
- 900 antenna frequency band:- Second Harmonic (1810 MHz - 1850 MHz); G model (1680 MHz - 1920 MHz)
- Third Harmonic: (2715 MHz - 2775 MHz); G model (2520 MHz - 2880 MHz)
- 2.4 antenna sensitivity: -140 dBm for both harmonics
- 900 antenna sensitivity: -130 dBm for both harmonics
DISPLAY
- Handle-mounted 2.7 inch touch screen controller display
- Antenna-mounted display
- Bar graph display for transmit power level, 2nd harmonic level, 3rd harmonic level, data field display, for other information (operation mode, low battery, volume, DSP gain, etc.)
MECHANICAL
- Extension lengths: 16-51 in (40.6 - 129.5 cm)
- Case dimensions: 6.25 in x 14.9 in x 18.5 in (15.9 cm x 37.8 cm x 47.0 cm)

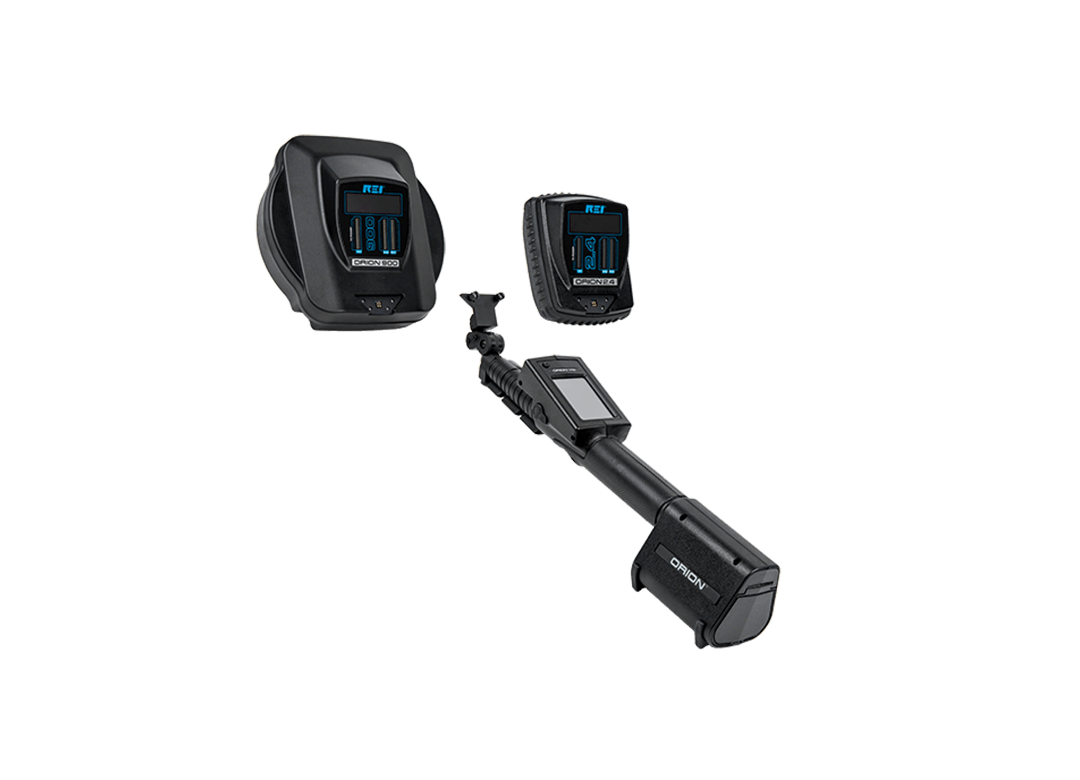

- ORION HX Deluxe dimensions (2.4 antenna): 22.4 in x 3.75 in x 3 in (57 cm x 9 cm x 7.5 cm)
- ORION HX Deluxe dimensions (900 antenna): 23 in x 3.75 in x 3 in (58.4 cm x 9 cm x 7.5 cm)
- Overall Extended Length: 58 in (147 cm)
- ORION HX Deluxe weight w/ battery (2.4 antenna): 3 lbs (1.4 kg)
- ORION HX Deluxe weight w/ battery (900 antenna): 3.6 lbs (1.6 kg)
- ORION HX Deluxe case and contents weight 14 lbs (6.4 kg)
- HX touchscreen Ingress Protection (IP) rating : IP63
BATTERY
- Input AC: 100-240 V, 50-60 Hz
- Run time: >4 hours per battery (typical)
- Charge time: 2.5 hours per battery
- Batteries: Lithium ion rechargeable (2 included)
- The supplied battery pack: RRC Power Solutions Lithium Ion Rechargeable Battery pack Model #RRC2040
THERMAL
- Operating temperature: -10 to 50°C
- Battery charging temperature: 5 to 37°C
- Storage temperature: -20 to 60°C
- Note: extended storage at temperatures above 40°C could degrade battery & OLED display performance and life.
