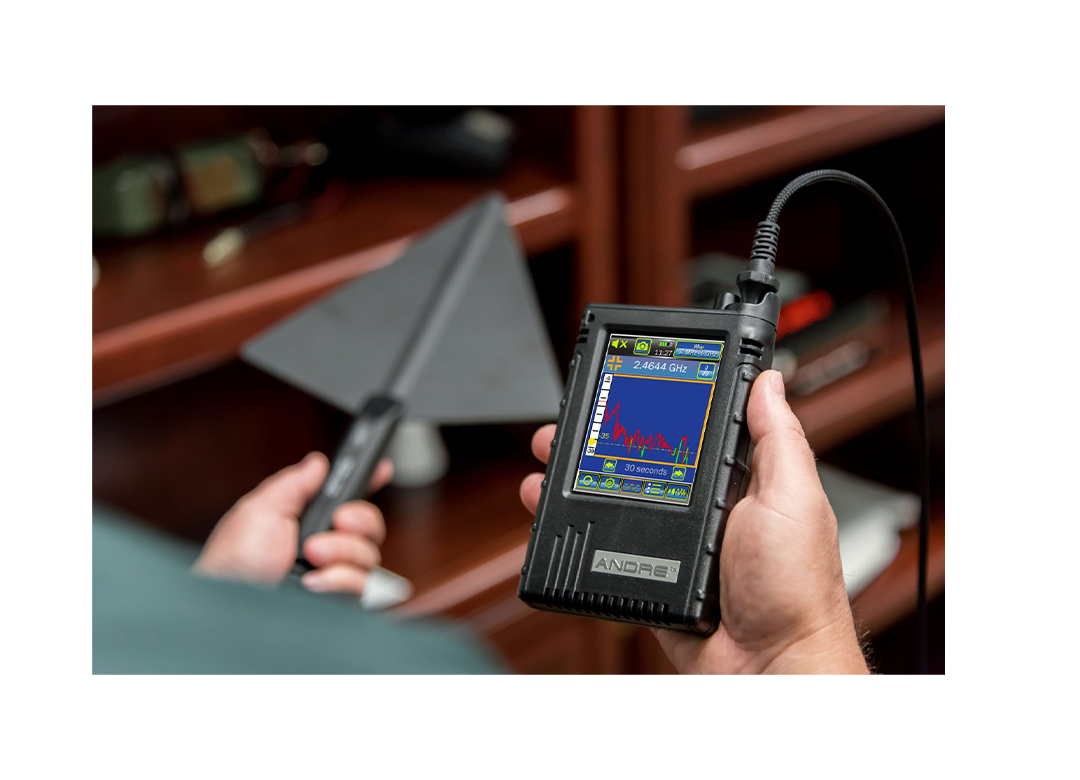

The ANDRE is a handheld broadband receiver that detects known, unknown, illegal, disruptive, or interfering transmissions. The ANDRE locates nearby RF, infrared, visible light, carrier current, and other types of transmitters. Quickly and discretely identify threats using the ANDRE Deluxe’s wide range of accessories specifically designed to receive transmissions from 10 kHz up to 12 GHz.
FeaturesThe ANDRE features a signal strength histogram displaying RF levels over user-selected time intervals ranging from 5 seconds to 24 hours. Observe differences between digital, analog, and burst signals and set alert thresholds with audio and haptic feedback.

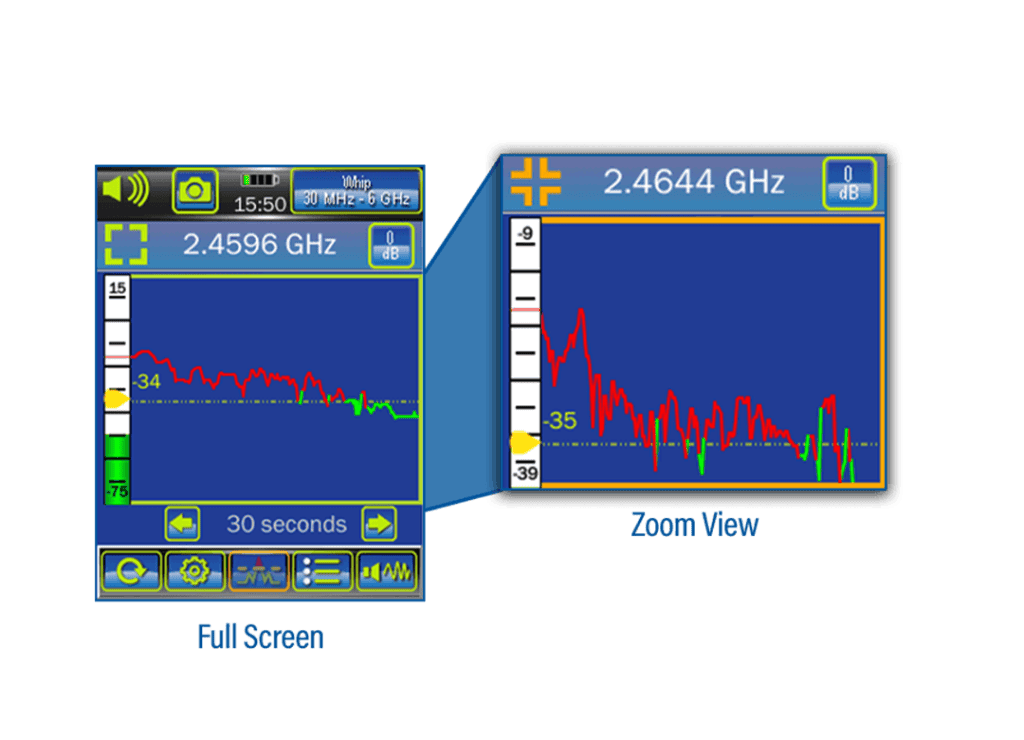

In zoom mode, only a 30 dB segment of the histogram is displayed. This reduced scale enables users to easily see small changes in RF signal activity.

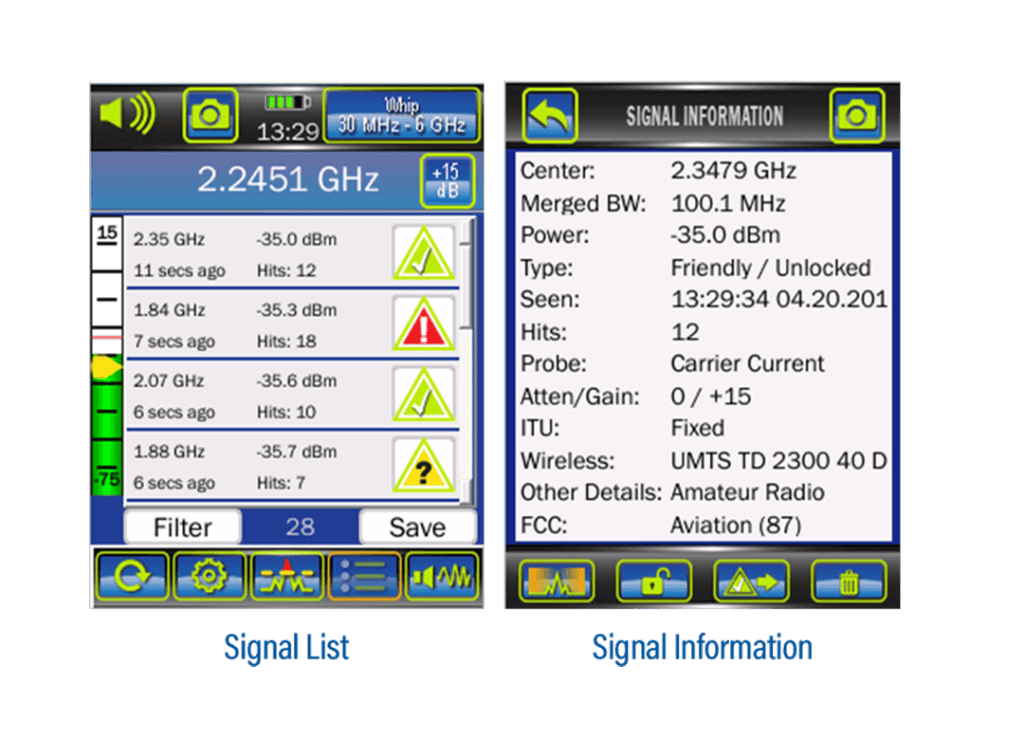

The ANDRE frequency counter automatically generates a signal list from the strongest signals. Signal frequencies are listed beginning with the strongest signal, and can be designated as threatening, friendly, or unknown. Double-tapping a signal provides more details including band classification information.
The ANDRE can demodulate and playback live analog audio. Ten second audio files can be recorded, stored, and played back. The live audio screen displays a bar graph showing received signal strength.
- Auto-recognition of attached probes displays the correlating frequency band
- 3.5” touchscreen display provides simple setup and operation
- Lightweight, handheld unit has a USB data port for file transfer
Sensitivity: -75 dBm for 3 GHz frequency (typical at RF input)
Stepped attenuation control: -20 dB, -10 dB, off, +15 dB
AUDIOBuilt-in speaker and external headphones with adjustable volume control
Tone style options: rising pitch, steady tone, off
DISPLAY3.5” (4 cm) capacitive touch screen
Screen brightness: High, Medium, Low
INPUT/OUTPUTUSB data port for software upgrades and file transfer
POWERInput: USB internal charger
Run time: >5 hours (typical)
Charge time: 1.5 hours (typical) for 80% charge, '<'3.5 hours (typical) for 95% charge
Batteries (4 included with Advanced and Deluxe): Nitecore 18650 Lithium Ion Rechargeable Battery Model #NL189, rated 3.7V, 3400mAh, 12.6Wh
MECHANICALCase dimensions: 6.25 in x 14.9 in x 18.5 in (15.9 cm x 37.8 cm x 47.0 cm)
ANDRE dimensions: 3.4 in x 5.7 in x 1.0 in (8.7 cm x 14.4 cm x 2.5 cm)
ANDRE weight with batteries: 0.65 lbs (0.3 kg)
Case weight with ANDRE & all accessories: 12.7 lbs (5.8 kg)
THERMALOperating temperature: -10° C to 50° C
Battery charging temperature: 0° C to 35° C
Storage temperature: -20° C to 50° C
Note: extended storage at temperatures above 40° C could degrade battery performance and life.
