Long Range Camera

4 Axis Electro-Optical Tracking System.

It offers advanced stabilization and zoom for extended-range tracking, ideal for perimeter security and tactical operations.

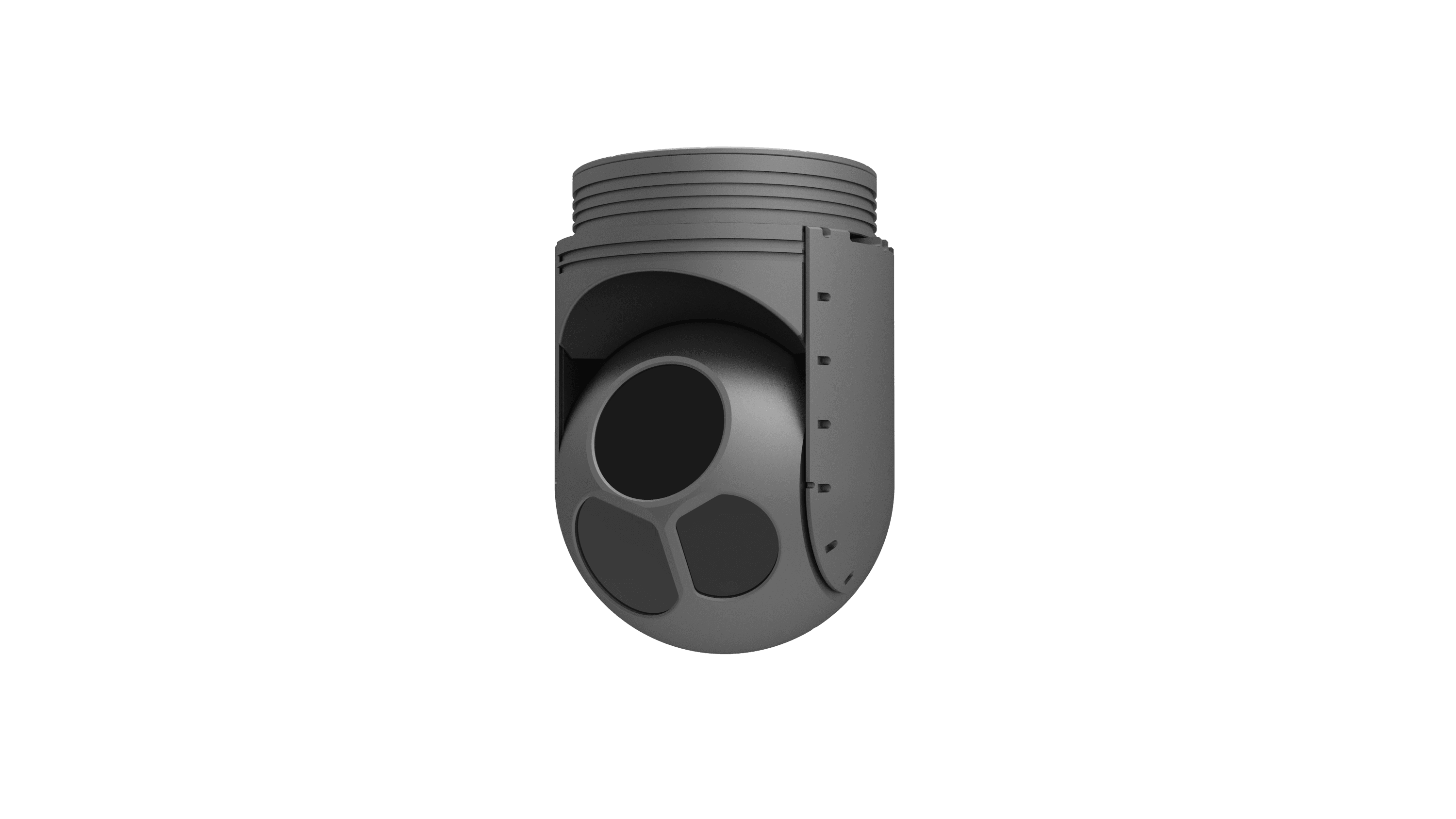

The TBX-20L series is a remote, high-performance Pan/Tilt thermal imaging camera system optimized for aircraft such as UAVs and helicopters. It supports the integration of 2, 3, or 4-axis configurations and various sensors.

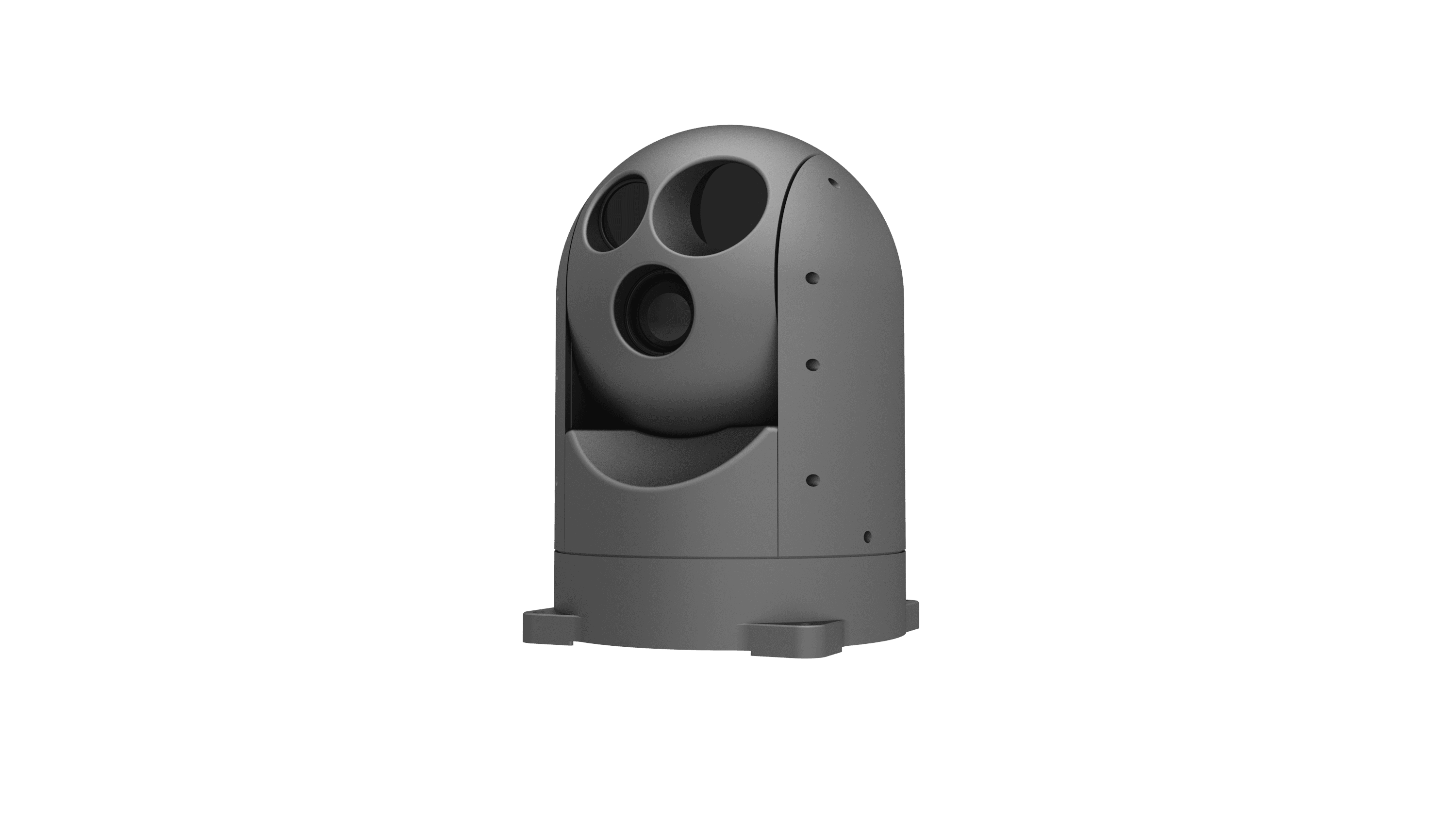

The TBX-20M series is a high-performance Pan/Tilt thermal imaging camera system suitable for port surveillance, vessel monitoring, and long-range surveillance. It supports the integration of multiple axes and various sensors.

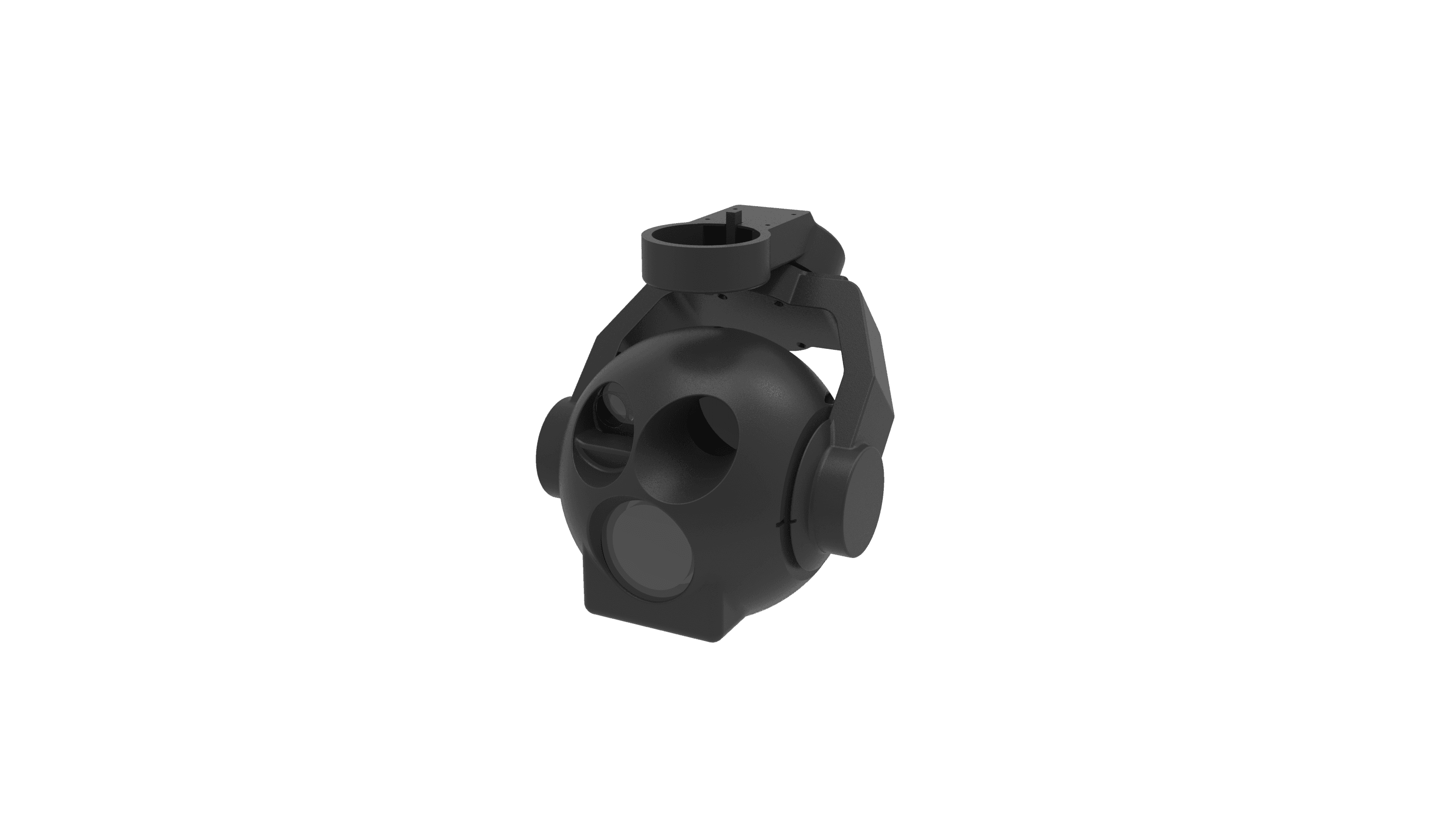

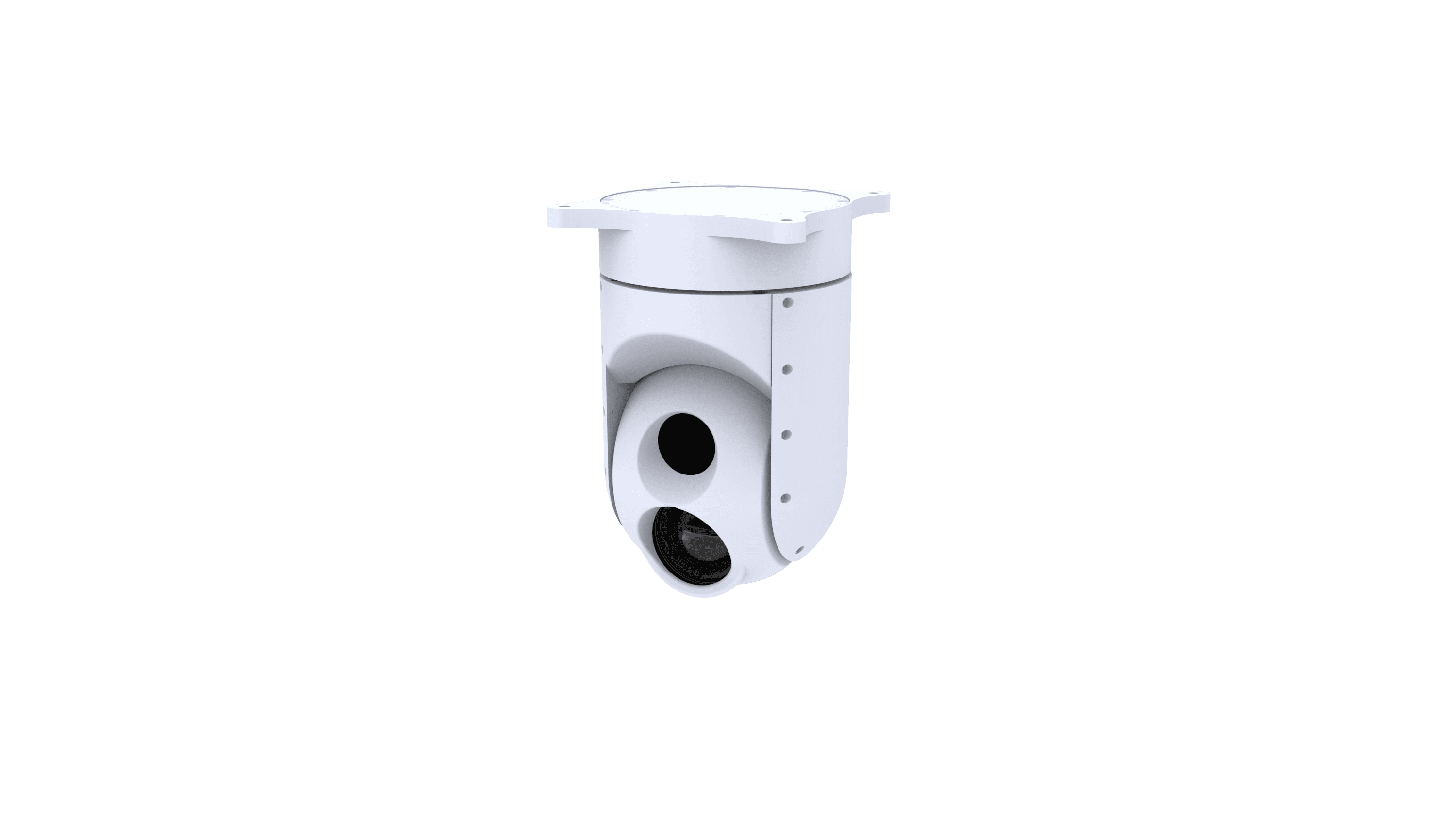

Compact and efficient long-range cameras designed for small-scale surveillance applications, featuring stabilized imaging for clear and steady observation.

Compact and efficient long-range cameras designed for small-scale surveillance applications, featuring stabilized imaging for clear and steady observation.

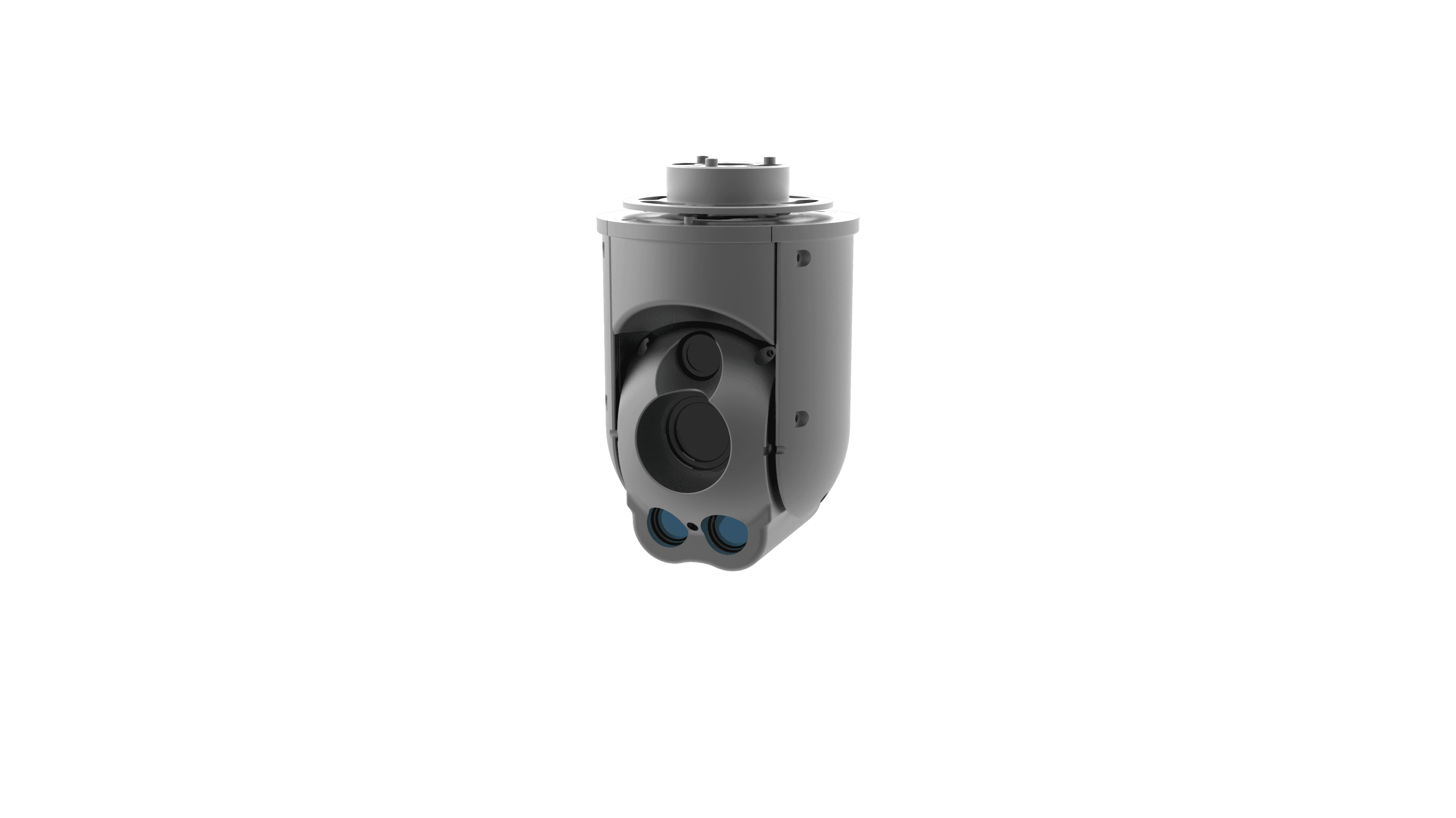

An ultra-light stabilized gimbal camera designed for applications that require lightweight equipment and stable imaging performance.

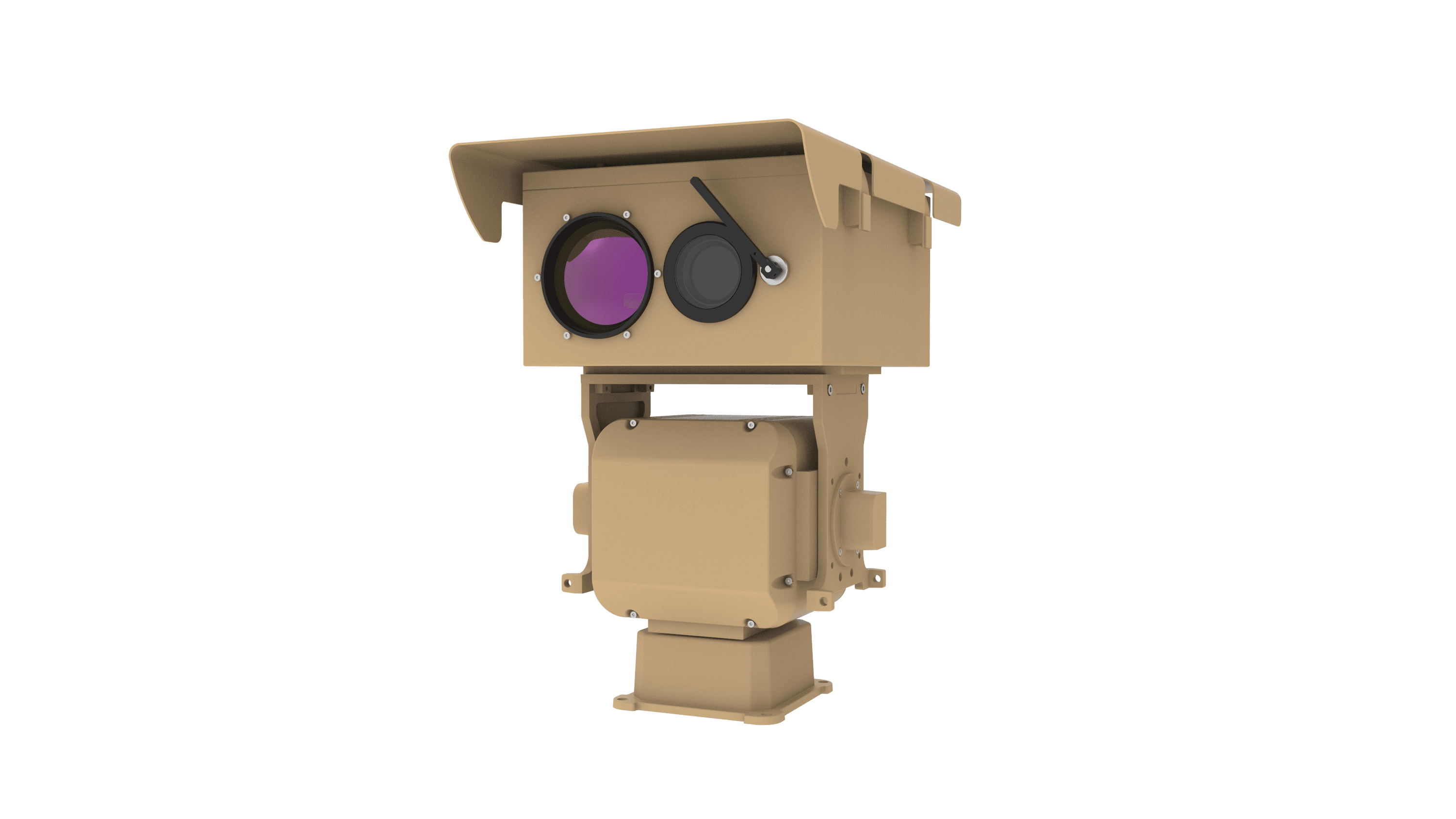

The TMS-10 Series supports payloads weighing up to 15 kg and can operate with a wide range of sensors, including EO/IR and LRF/GPS/DMC systems with various lens options. Its durable construction is designed to withstand demanding environments, including prolonged exposure to rain, wind, and vibration.

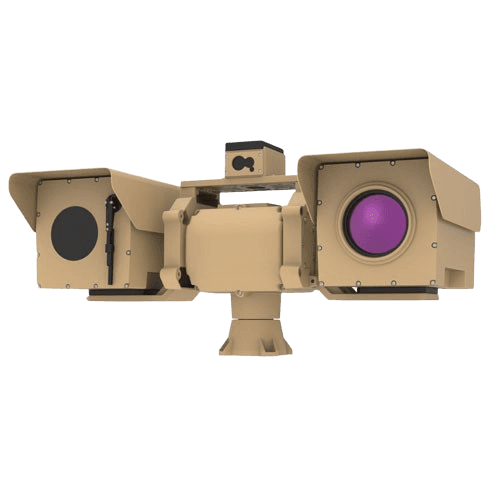

The TMS-20 Series features a high-precision mechanism that enables stable operation at speeds as low as 0.01 degrees per second, with zero backlash. Its built-in digital image stabilizer supports EO/IR imaging and helps compensate for image shake.

The EVO2 Oculus range uses advanced thermal cores and lens technology to provide surveillance in extreme conditions. Available with fixed field-of-view lenses, it offers thermal sensor resolutions of 640 × 512 and 1024 × 768 XGA, both with 12 μm pixel pitch. The Oculus is a compact, rugged, continuously rotating dual-sensor PTZ camera featuring an uncooled LWIR thermal sensor with fixed lenses up to 35 mm and an HD visible-light sensor.

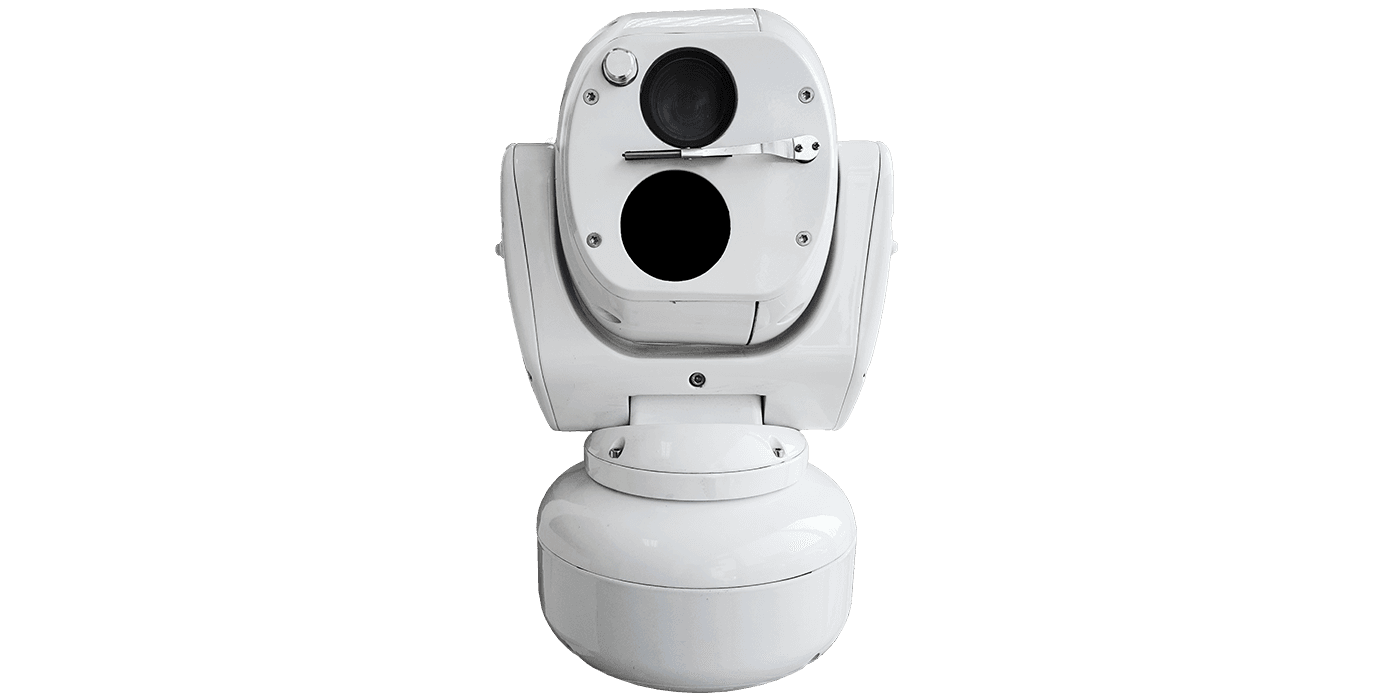

The Oculus Scout is a compact, rugged, continuously rotating dual-sensor PTZ camera with an uncooled LWIR thermal sensor featuring fixed lenses up to 50 mm and an HD visible-light sensor. Its IP67-rated, hard-anodized enclosure makes it suitable for coastal surveillance, perimeter security, and vehicle-mounted installations. Thermal detection range: Up to 1.1 km for humans and 3.39 km for vehicles. Thermal sensor: Uncooled LWIR, with lenses up to 50 mm. Visible camera: 30× zoom HD sensor with a standard wiper. Rotation: 360° continuous rotation, with pan and tilt speeds up to 180° per second. Positioning accuracy: 0.01°. Mounting options: Hanging, upright, or vehicle-mounted.

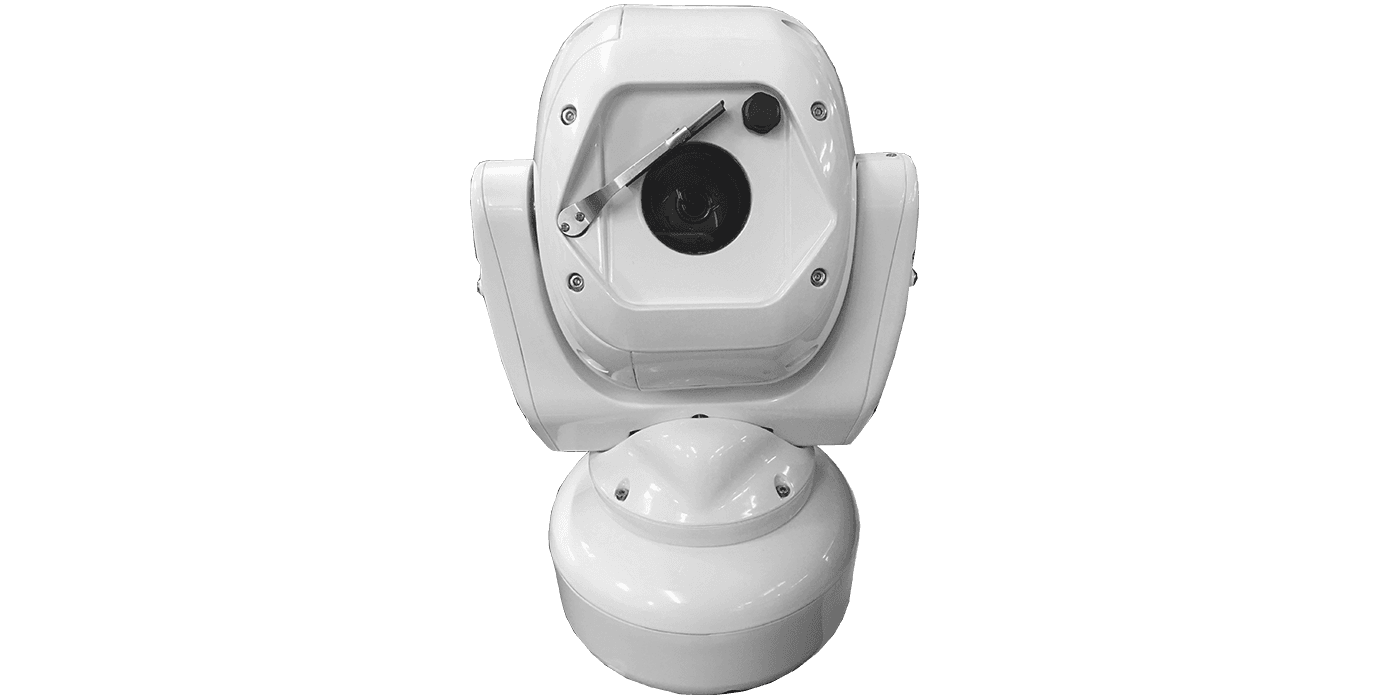

The Oculus HD is a compact, rugged, continuously rotating PTZ camera equipped with a 30× zoom, low-light HD visible Starvis sensor. Optional illuminators, including white light, infrared, and hybrid configurations, can be integrated. Its IP67-rated, hard-anodized enclosure supports reliable operation in demanding environments such as coastal surveillance sites, security perimeters, and vehicle-mounted installations.

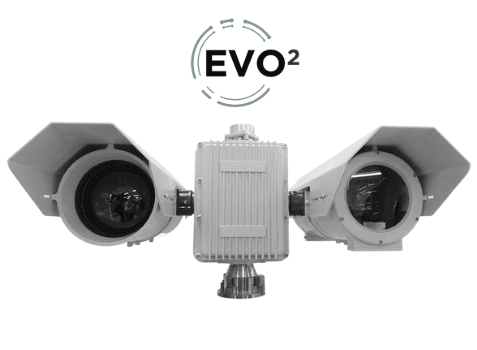

The EVO2 Jaegar Ranger provides long-range thermal surveillance with advanced thermal imaging and visible-light camera options. Thermal lenses: LWIR zoom lenses up to 20–300 mm. Pixel pitch: 12 μm. Thermal resolutions: 640 × 512, 1024 × 768 XGA, or 1280 × 1024 HD. Visible camera options: 4.3–129 mm or 15–500 mm HD sensors. Detection range: Humans up to 9.3 km and vehicles up to 28.7 km.

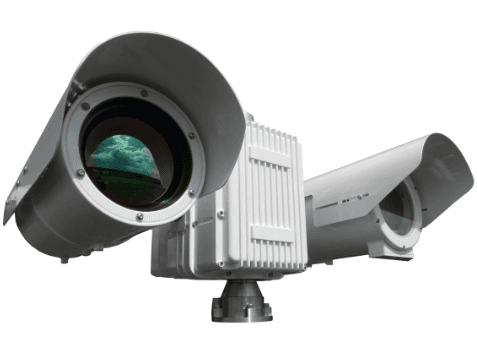

The Jaegar Searcher is designed for long-range surveillance using cooled mid-wave infrared (MWIR) thermal imaging and high-magnification optics. Thermal imaging: Cooled MWIR sensor with zoom lenses up to 100–1200 mm. Visible camera options: 15–500 mm or 16–1000 mm HD sensors, with extension up to 2000 mm using a 2× extender. Detection range: Humans up to 24.17 km and vehicles up to 31.17 km.

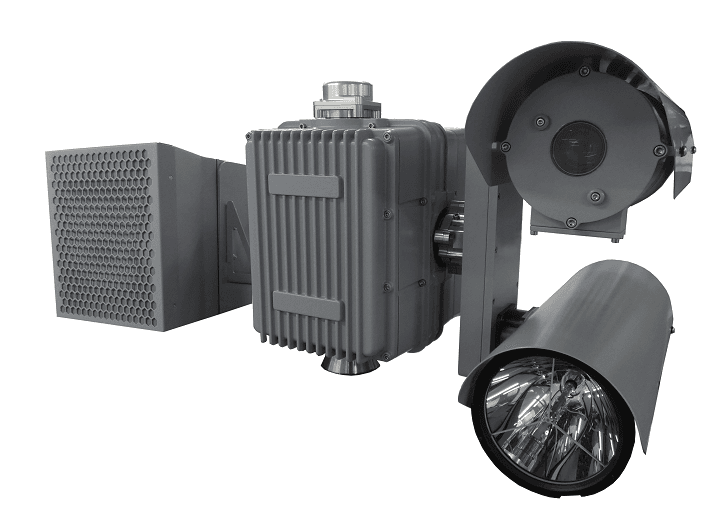

The Jaegar Sonus combines long-range acoustic hailing with optional HD visible-light or LWIR thermal imaging. An optional long-range illuminator is also available. It can deliver sound pressure levels of up to 154 dB, enabling clear, directional, intelligible voice communication over distances of up to 2 km

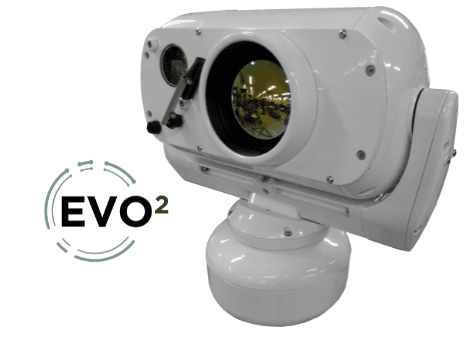

The EVO2 Aeron uses advanced thermal sensors and lens technology for surveillance in demanding environments. It features a rugged, continuously rotating dual-sensor PTZ camera with an uncooled LWIR thermal sensor and an HD visible-light sensor. Lens options include fixed lenses up to 100 mm and zoom lenses up to 150 mm. Its IP67-rated enclosure is suitable for maritime, border-security, and vehicle-mounted applications. Thermal resolutions: Up to 1024 × 768 XGA. Pixel pitch: Down to 12 μm. Autofocus: Push autofocus on selected thermal zoom lenses. Visible camera: 30× zoom HD sensor with a standard wiper. Rotation: 360° continuous rotation, with pan and tilt speeds up to 160° per second.

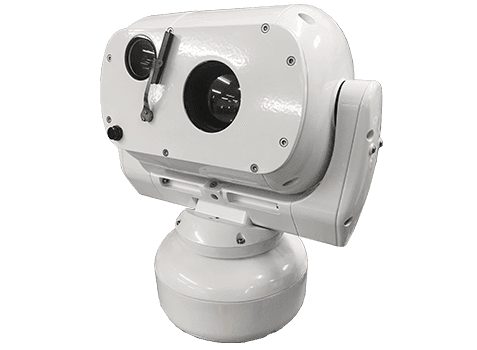

The Aeron Scout is a rugged, continuously rotating dual-sensor PTZ camera featuring an uncooled LWIR thermal sensor with fixed lenses up to 100 mm and an HD visible-light sensor. Its IP67-rated enclosure supports operation in demanding maritime, border-security, and vehicle-mounted environments. Thermal detection range: Up to 2.2 km for humans and 6.7 km for vehicles. Thermal sensor: Uncooled LWIR, with lenses up to 100 mm. Rotation: 360° continuous rotation, with pan and tilt speeds up to 160° per second. Positioning accuracy: 0.01°. Mounting options: Inverted, upright, or inclined.

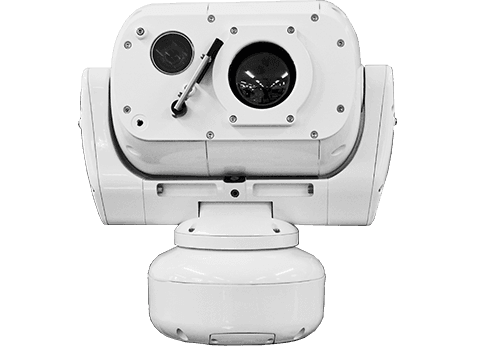

The Aeron Ranger is a rugged, continuously rotating dual-sensor PTZ camera featuring an uncooled LWIR thermal sensor with zoom lenses up to 150 mm and an HD visible-light sensor. Its IP67-rated enclosure is designed for extreme environments, including maritime, border-security, and vehicle-mounted applications. Thermal detection range: Up to 3.29 km for humans and 10.1 km for vehicles. Visible camera: 30× zoom HD sensor with a standard wiper. Rotation: 360° continuous rotation, with pan and tilt speeds up to 160° per second. Construction: Compact and ruggedized for extreme and marine environments. Mounting options: Inverted, upright, or inclined.
